Camshaft - LH: Camshafts: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the RH camshafts are being serviced at the same time as the LH camshafts, remove the RH camshafts first. For additional information, refer to CAMSHAFT - RH  .
NOTE: If the components are to be reinstalled, they must be installed in their original location. Mark the components for installation into their original location.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  .
  2. Using the crankshaft holding tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position.
    Fig 1: Rotating Crankshaft Clockwise Until Keyway Is At 12 O'Clock Position Using Crankshaft Holding Tool
    G07408937Courtesy of FORD MOTOR CO.
  3. Verify the data matrix on the camshafts is facing up, if not, rotate the crankshaft clockwise one revolution.
    Fig 2: Locating Data Matrix On Camshafts
    G07408938Courtesy of FORD MOTOR CO.
    4. NOTE: IF EITHER THE PRIMARY TENSIONER OR TIMING CHAIN TENSIONER ARM REQUIRE REPLACEMENT, BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MUST BE REPLACED. FAILURE TO REPLACE BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MAY RESULT IN OVERLOADING OF THE TIMING CHAIN AND UNDER CERTAIN CONDITIONS COULD LEAD TO TIMING CHAIN FAILURE.
    Fig 3: Locating Bolts And RH Primary Timing Chain Tensioner
    G07408939Courtesy of FORD MOTOR CO.
  4. Remove the 2 bolts and the RH primary timing chain tensioner.
    5. NOTE: IF EITHER THE PRIMARY TENSIONER OR TIMING CHAIN TENSIONER ARM REQUIRE REPLACEMENT, BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MUST BE REPLACED. FAILURE TO REPLACE BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MAY RESULT IN OVERLOADING OF THE TIMING CHAIN AND UNDER CERTAIN CONDITIONS COULD LEAD TO TIMING CHAIN FAILURE.
    NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain tensioner arm. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain tensioner arm.
    Fig 4: Locating RH Timing Chain Tensioner Arm
    G07408940Courtesy of FORD MOTOR CO.
  5. Remove the RH timing chain tensioner arm.
    6. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after removing the RH timing chain guide.

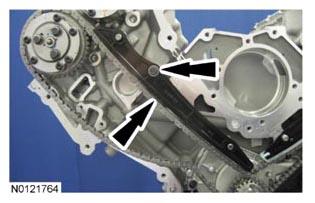

    Fig 5: Locating Bolt And RH Timing Chain Guide
    G07960581Courtesy of FORD MOTOR CO.
  6. Remove the bolt and the RH timing chain guide.
  7. Remove the RH primary timing chain.
    Fig 6: Locating RH Primary Timing Chain
    G07408942Courtesy of FORD MOTOR CO.
  8. Using the crankshaft holding tool, rotate the crankshaft counterclockwise until the crankshaft keyway is at the 9 o'clock position.
    Fig 7: Rotating Crankshaft Counterclockwise Until Crankshaft Keyway Is At 9 O'Clock Position Using Crankshaft Holding Tool
    G07408947Courtesy of FORD MOTOR CO.
    9. NOTE: IF EITHER THE PRIMARY TENSIONER OR TIMING CHAIN TENSIONER ARM REQUIRE REPLACEMENT, BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MUST BE REPLACED. FAILURE TO REPLACE BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MAY RESULT IN OVERLOADING OF THE TIMING CHAIN AND UNDER CERTAIN CONDITIONS COULD LEAD TO TIMING CHAIN FAILURE.
    Fig 8: Locating Bolts And LH Primary Timing Chain Tensioner
    G07408948Courtesy of FORD MOTOR CO.
  9. Remove the 2 bolts and the LH primary timing chain tensioner.
    10. NOTE: IF EITHER THE PRIMARY TENSIONER OR TIMING CHAIN TENSIONER ARM REQUIRE REPLACEMENT, BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MUST BE REPLACED. FAILURE TO REPLACE BOTH THE PRIMARY TENSIONER AND TIMING CHAIN TENSIONER ARM MAY RESULT IN OVERLOADING OF THE TIMING CHAIN AND UNDER CERTAIN CONDITIONS COULD LEAD TO TIMING CHAIN FAILURE.
    NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain tensioner arm. Return the crankshaft keyway to the 9 o'clock position after removing the LH timing chain tensioner arm.
    Fig 9: Locating LH Timing Chain Tensioner Arm
    G07408949Courtesy of FORD MOTOR CO.
  10. Remove the LH timing chain tensioner arm.
    11. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to remove the LH timing chain guide. Return the crankshaft keyway to the 9 o'clock position after removing the LH timing chain guide.
    Fig 10: Locating Bolt And LH Timing Chain Guide
    G07408950Courtesy of FORD MOTOR CO.
  11. Remove the bolt and the LH timing chain guide.
  12. Remove the LH primary timing chain.
    Fig 11: Locating LH Primary Timing Chain
    G07408951Courtesy of FORD MOTOR CO.
  13. Remove the 3 LH intake Variable Camshaft Timing (VCT) assembly bolts and the 3 LH exhaust VCT assembly bolts.
    Fig 12: Locating LH Intake Variable Camshaft Timing Assembly Bolts And LH Exhaust VCT Assembly Bolts
    G07408952Courtesy of FORD MOTOR CO.
  14. Slide the LH VCT assemblies and secondary timing chain forward 2 mm (0.078 in).
    Fig 13: Sliding LH VCT Assemblies And Secondary Timing Chain Forward 2 mm (0.078 in)
    G07408953Courtesy of FORD MOTOR CO.
  15. Depress the LH secondary timing chain tensioner and turn the tensioner 90 degrees.
    Fig 14: Depressing LH Secondary Timing Chain Tensioner
    G07408954Courtesy of FORD MOTOR CO.
  16. Remove the LH VCT assemblies and the LH secondary timing chain.
    Fig 15: Locating LH VCT Assemblies And LH Secondary Timing Chain
    G07408955Courtesy of FORD MOTOR CO.
    17. NOTE: Intake camshaft shown in illustration, exhaust camshaft similar.
    Fig 16: Removing VCT System Oil Filter From Intake And Exhaust Camshafts
    G07409030Courtesy of FORD MOTOR CO.
  17. Remove the VCT system oil filter from the intake and exhaust camshafts.
    18. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.
    Fig 17: Locating Bolts And LH Front Camshaft Bearing Mega Cap
    G07409031Courtesy of FORD MOTOR CO.
  18. Remove the 4 bolts and the LH front camshaft bearing mega cap.
  19. Remove the 16 bolts and the 8 camshaft bearing caps.
  20. Remove the LH intake and exhaust camshafts.
