Engine - Upper End

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

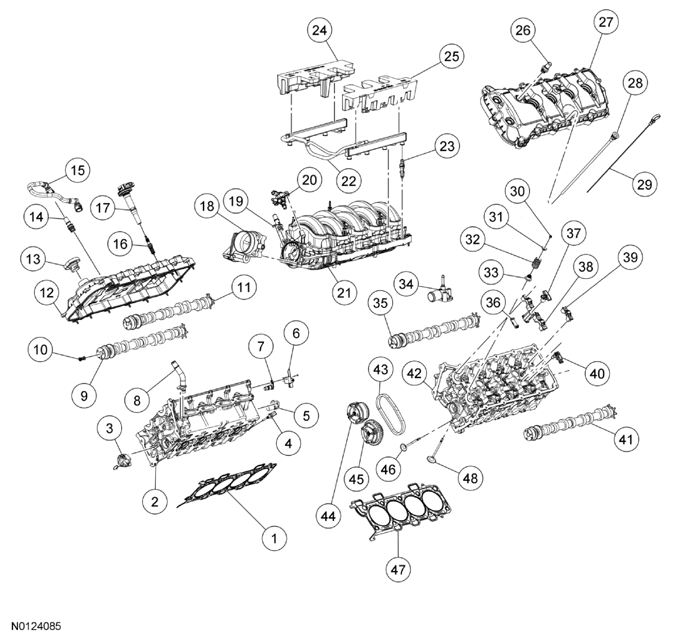

Fig 1: Exploded View Of Engine - Upper End

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6051	RH cylinder head gasket
2	6049	RH cylinder head
3	6L266	Primary timing chain tensioner (2 required)
4	6G004	Cylinder Head Temperature (CHT) sensor
5	6B288	Intake Camshaft Position (CMP) sensor (2 required)
6	18801	Radio capacitor (2 required)
7	12K073	Exhaust CMP sensor (2 required)
8	18696	Heater supply tube
9	6250	RH exhaust camshaft
10	6C683	Camshaft engine oil filter (4 required)
11	6250	RH intake camshaft
12	6582	RH valve cover
13	6766	Oil filler cap
14	6A666	PCV valve
15	6578	Crankcase vent hose
16	12405	Spark plug (8 required)
17	12029	Ignition coil on plug (8 required)
18	9F991	Throttle Body (TB)
19	9F624	Heat control inlet tube
20	9C915	Fuel vapor purge valve
21	9424	Intake manifold
22	9F792	Fuel rail
23	9F593	Fuel injector (8 required)
24	6P013	RH fuel injector insulator shield
25	6P013	LH fuel injector insulator shield
26	6762	Crankcase vent valve
27	6582	LH valve cover
28	6754	Oil indicator tube
29	6750	Oil indicator
30	6518	Valve spring retainer key (64 required)
31	6514	Valve spring retainer (32 required)
32	6513	Valve spring (32 required)
33	6571	Valve stem seal (32 required)
34	8594	Coolant outlet connector
35	6250	LH intake camshaft
36	6K297	Secondary tensioner shoe (2 required)
37	6K254	Secondary tensioner (2 required)
38	-	Camshaft bearing cap (part of 6049) (2 required)
39	-	Camshaft bearing cap (part of 6049) (16 required)
40	6500/6564	Hydraulic lash adjuster/camshaft roller follower (32 required)
41	6250	LH exhaust camshaft
42	6049	LH cylinder head
43	6268	Secondary timing chain (2 required)
44	6256	Intake camshaft Variable Camshaft Timing (VCT) (2 required)
45	6256	Exhaust camshaft VCT (2 required)
46	6505	Exhaust valve (16 required)
47	6051	LH cylinder head gasket
48	6507	Intake valve (16 required)
