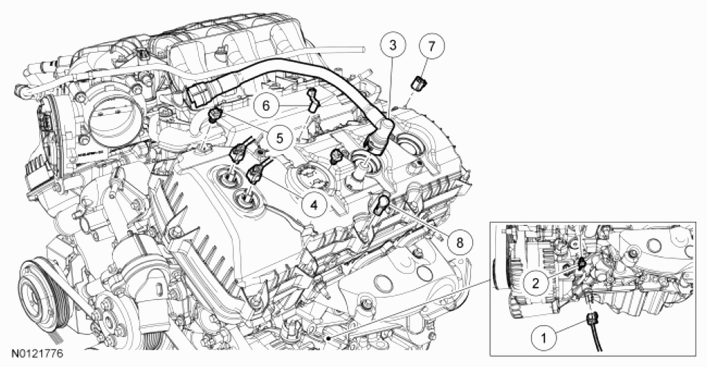

Valve Cover - LH (View 1 of 2)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine Oil Pressure (EOP) switch electrical connector (part of 14A411) |
| 2 | - | EOP switch electrical connector wiring harness pin-type retainer (part of 14A411) |
| 3 | 6758 | Crankcase ventilation tube |
| 4 | - | LH Variable Camshaft Timing (VCT) electrical connector (part of 14A411) (2 required) |
| 5 | - | LH valve cover wiring harness pin-type retainer (part of 14A411) (2 required) |
| 6 | - | LH valve cover stud bolt wiring harness retainer (part of 14A411) |
| 7 | - | LH valve cover stud bolt wiring harness retainer (part of 14A411) |
| 8 | - | LH valve cover stud bolt wiring harness retainer (part of 14A411) |
