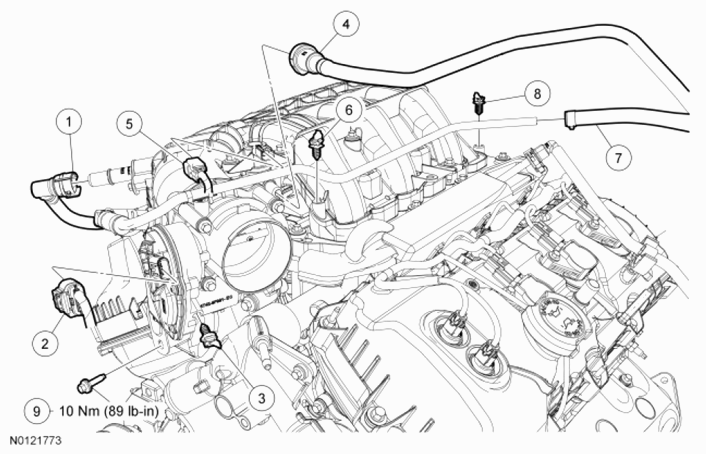

Upper Intake Manifold (View 1 of 2)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A664 | PCV tube quick connect coupling |
| 2 | - | Throttle Body (TB) electrical connector (part of 14A411) |
| 3 | - | TB electrical connector wiring harness pin-type retainer (part of 14A411) |
| 4 | 9J280 | Evaporative Emission (EVAP) tube |
| 5 | - | EVAP canister purge valve electrical connector (part of 14A411) |
| 6 | - | EVAP canister purge valve electrical connector wiring harness pin-type retainer (part of 14A411) |
| 7 | - | Brake booster vacuum hose (part of 9C482) |
| 8 | - | Wiring harness pin-type retainer (part of 14A411) |
| 9 | W503275 | Upper intake manifold support bracket bolt |
