Oil Pan: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, REFER to BATTERY, MOUNTING AND CABLES .
  3. Remove the oil level indicator.
    Fig 1: Locating Oil Level Indicator
    G07959762Courtesy of FORD MOTOR CO.
    4. NOTE: This step does not apply if the engine front cover is removed.
    Fig 2: Locating Upper Bellhousing-To-Engine Bolts
    G07958789Courtesy of FORD MOTOR CO.
  4. Loosen the 4 upper bellhousing-to-engine bolts 5 mm (0.19 in).
  5. If equipped, remove the bolts and the skid plate.
  6. Remove the bolt for the transmission cooler tube bracket from the radiator support.
    Fig 3: Locating Transmission Cooler Tube Bracket Bolt
    G07958790Courtesy of FORD MOTOR CO.
  7. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
      Fig 4: Locating Drain Plug
      G07958791Courtesy of FORD MOTOR CO.
  8. Remove and discard the engine oil filter.
    Fig 5: Locating Engine Oil Filter
    G07959766Courtesy of FORD MOTOR CO.
    9. NOTE: This step does not apply if the engine front cover is removed.
    Fig 6: Locating Transmission Cooler Line Bracket And Nut
    G07410347Courtesy of FORD MOTOR CO.
  9. Remove the nut and the transmission cooler line bracket from the engine front cover stud bolt.
    10. NOTE: This step does not apply if the engine front cover is removed.
    Fig 7: Locating Generator Wiring Harness
    G07407004Courtesy of FORD MOTOR CO.
  10. Detach the generator wiring harness from the engine front cover.
  11. Remove the starter motor. For additional information, REFER to STARTING SYSTEM .
  12. Detach the starter motor wiring harness retainer from the oil pan.
    Fig 8: Locating Starter Motor Wiring Harness Retainer
    G07407002Courtesy of FORD MOTOR CO.
  13. Remove the 4 nuts and bolts and the crossmember.
    Fig 9: Locating Crossmember Nuts And Bolts
    G07959770Courtesy of FORD MOTOR CO.

    Four Wheel Drive (4X4) vehicles

  14. Position a suitable hydraulic jack under the front axle. Securely strap the jack to the axle.
    Fig 10: Positioning Suitable Hydraulic Jack Under Front Axle
    G06126415Courtesy of FORD MOTOR CO.
  15. Remove the upper front axle carrier mounting bushing bolt.
    Fig 11: Locating Upper Front Axle Carrier Mounting Bushing Bolt
    G06126416Courtesy of FORD MOTOR CO.
  16. Remove the axle shaft housing carrier bushing bolt.
    Fig 12: Locating Axle Shaft Housing Carrier Bushing Bolt
    G06126417Courtesy of FORD MOTOR CO.
    17. NOTE: Front driveshaft removed for clarity only.
    Fig 13: Locating Lower Front Axle Carrier Mounting Bushing Bolt
    G06126418Courtesy of FORD MOTOR CO.
  17. Remove the lower front axle carrier mounting bushing bolt.
    18. NOTE: Use care when lowering the front axle housing, or the vacuum lines to the axle solenoid may become disconnected or damaged.
  18. Lower the axle to allow clearance for the oil pan to be removed.

    All vehicles

    19. NOTE: This step does not apply if the engine front cover is removed.
    Fig 14: Locating Engine-To-Bellhousing Bolt
    G07958800Courtesy of FORD MOTOR CO.
  19. Loosen the engine-to-bellhousing bolt above the starter motor 5 mm (0.19 in).
  20. Remove the oil pan-to-bellhousing bolt from below the starter motor.
    Fig 15: Locating Oil Pan-To-Bellhousing Bolt
    G07958801Courtesy of FORD MOTOR CO.
    21. NOTE: This step does not apply if the engine front cover is removed.
    Fig 16: Locating LH Bellhousing-To-Engine Bolts
    G07958802Courtesy of FORD MOTOR CO.
  21. Loosen the 2 LH bellhousing-to-engine bolts 5 mm (0.19 in).
  22. Remove the 2 LH bellhousing-to-oil pan bolts.
    Fig 17: Locating LH Bellhousing-To-Oil Pan Bolts
    G07958803Courtesy of FORD MOTOR CO.
    23. NOTE: This step does not apply if the engine front cover is removed.
    Fig 18: Locating Transmission Crossmember Nuts
    G06127312Courtesy of FORD MOTOR CO.
  23. Loosen the 2 transmission crossmember nuts.
    24. NOTE: This step does not apply if the engine front cover is removed.
  24. Slide the transmission rearward 5 mm (0.19 in).
    25. NOTE: This step does not apply if the engine front cover is removed.
    Fig 19: Locating Lower Engine Front Cover Bolts
    G07958805Courtesy of FORD MOTOR CO.
  25. Remove the 4 lower engine front cover bolts.
  26. Remove the 16 oil pan bolts.
    Fig 20: Locating Oil Pan Bolts
    G07958806Courtesy of FORD MOTOR CO.
    27. NOTE: LH rear shown in illustration, RH front similar.
    Fig 21: Prying Pads At LH And RH Sides Of Oil Pan
    G07958807Courtesy of FORD MOTOR CO.
  27. Using a suitable pry tool, locate the 2 pry pads at the LH and RH sides of the oil pan and pry the oil pan loose and remove.
    28. NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

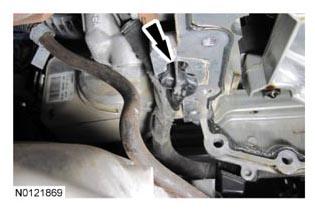

    Fig 22: Locating Generator Wiring Harness Retainer
    G07958808Courtesy of FORD MOTOR CO.
  28. Detach the generator wiring harness retainer from the engine block.
    29. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
  29. Clean the engine oil pan using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM.
    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
    30. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the cylinder block and engine front cover sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.
  30. Clean the sealing surfaces of the cylinder block and engine front cover in the following sequence.
    1. Remove any large deposits of silicone or gasket material.
    2. Apply silicone gasket remover and allow to set for several minutes.
    3. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep to remove any remaining traces of oil and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
