Oil Cooler: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the oil cooler to the oil filter adapter and tighten the oil cooler insert bolt.
    • Tighten to 58 Nm (43 lb-ft).

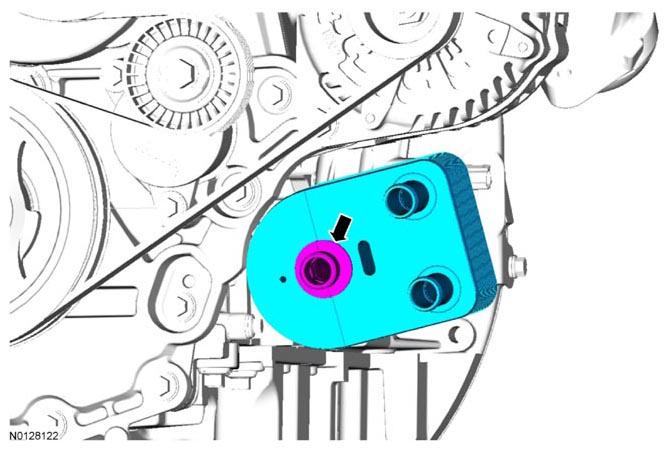

      Fig 1: Locating Oil Cooler Insert Bolt
      G07958885Courtesy of FORD MOTOR CO.
  2. Connect the 2 coolant hoses to the engine oil cooler and remove the hose clamp pliers.

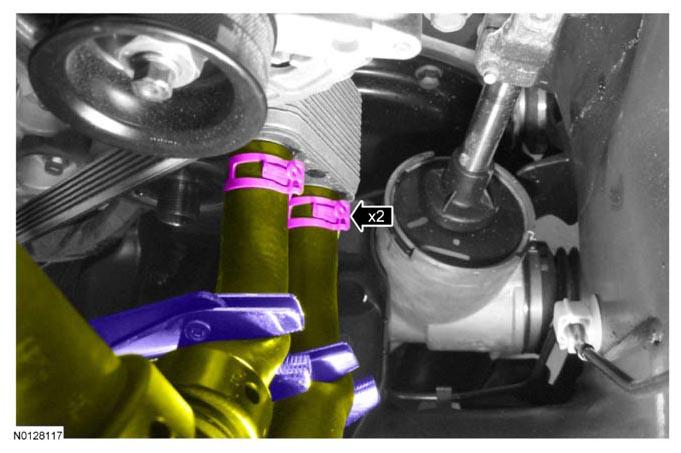

    Fig 2: Locating Oil Cooler Coolant Hoses Clamps
    G07958884Courtesy of FORD MOTOR CO.
    3. NOTE: Do not lubricate the engine oil filter gasket.
  3. Install a new engine oil filter.
    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.
  4. Inspect and adjust the coolant level in the degas bottle.
  5. Inspect and adjust the engine oil level.
