Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Heated Oxygen Sensor (HO2S) electrical connector (part of 14A411) (2 required) |
| 2 | W714265 | Catalytic converter-to-exhaust manifold nuts (4 required) - 45 Nm (35 lb-ft) |
| 3 | 5F250 | Catalytic converter assembly (Y-pipe) |

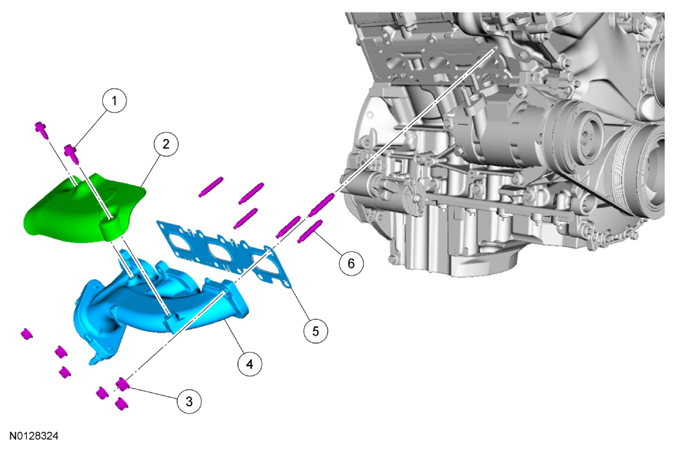

| Item | Part Number | Description |
|---|---|---|
| 1 | W714133 | RH exhaust manifold heat shield bolt (2 required) - 12 Nm (106 lb-in) |
| 2 | 9A462 | RH exhaust manifold heat shield |
| 3 | W701706 | RH exhaust manifold nut (6 required) |
| 4 | 9430 | RH exhaust manifold |
| 5 | 9448 | RH exhaust manifold gasket |
| 6 | W712244 | RH exhaust manifold stud (6 required) - 12 Nm (106 lb-in) |
