Exhaust Manifold - LH: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Metal Surface Prep ZC-31-A	-

Fig 1: Identifying LH Exhaust Manifold Related Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Heated Oxygen Sensor (HO2S) electrical connector (part of 14A411) (2 required)
2	W714265	Catalytic converter-to-exhaust manifold nuts (4 required) - 45 Nm (35 lb-ft)
3	5F250	Catalytic converter assembly (Y-pipe)

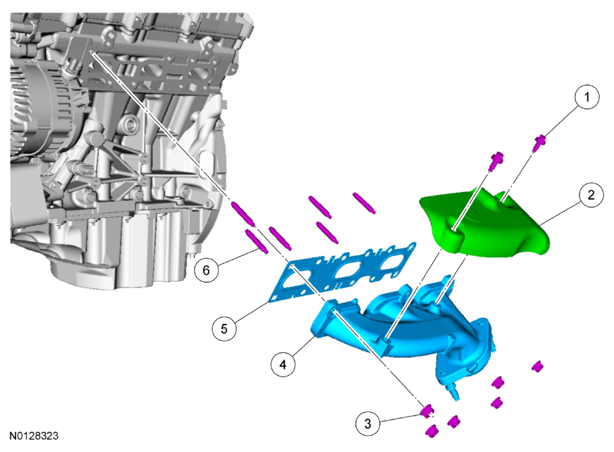

Fig 2: Identifying LH Exhaust Manifold Related Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W714133	LH exhaust manifold heat shield bolt (2 required) - 12 Nm (106 lb-in)
2	9Y427	LH exhaust manifold heat shield
3	W701706	LH exhaust manifold nut (6 required)
4	9431	LH exhaust manifold
5	9448	LH exhaust manifold gasket
6	W712244	LH exhaust manifold stud (6 required) - 12 Nm (106 lb-in)
