Engine Support Insulators: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
NOTE: Index-mark the hood hinge location to aid in hood installation.
NOTE: RH shown in illustration, LH similar.
Fig 1: Locating Hood And Bolts
Courtesy of FORD MOTOR CO.
2. Remove the 4 bolts (2 shown) in illustration and the hood.
3. Remove the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD  .
4. Remove the cowl panel grille. For additional information, REFER to FRONT END BODY PANELS .
5. Remove the 6 screws and release the 2 cowl panel clips and remove the cowl panel.
   Fig 2: Locating Cowl Panel

   Courtesy of FORD MOTOR CO.
6. Install the LH engine lift eye.
   Fig 3: Installing LH Engine Lift Eye

   Courtesy of FORD MOTOR CO.
7. Remove the 4 pushpins and the upper radiator air deflector.

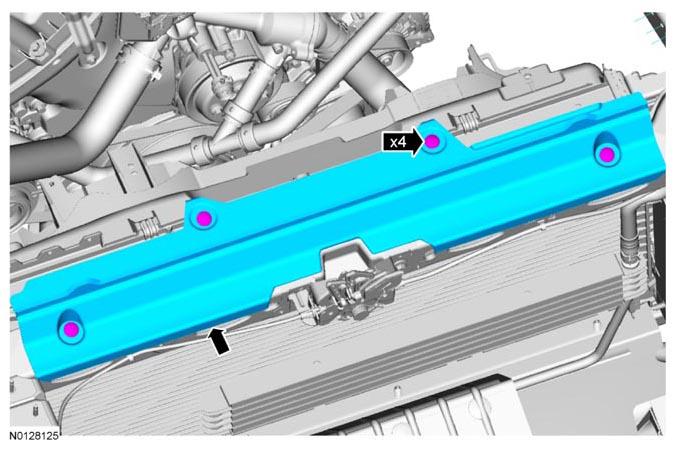

   Fig 4: Locating Upper Radiator Air Deflector And Pushpins

   Courtesy of FORD MOTOR CO.
8. Install the Engine Support Bar.

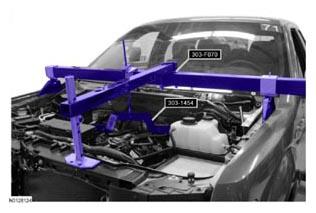

   Fig 5: Installing Engine Support Bar

   Courtesy of FORD MOTOR CO.
9. If equipped, remove the front driveshaft. For additional information, REFER to DRIVESHAFT .
10. Remove the 2 exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
    • Discard the 2 bolts.
      Fig 6: Locating Exhaust Y-Pipe Dual Catalytic Converter-To-Exhaust Intermediate Pipe Bolts

      Courtesy of FORD MOTOR CO.
NOTE: LH shown in illustration, RH similar.
Fig 7: Locating LH And RH Catalytic Converter-To-Exhaust Manifold Nuts
Courtesy of FORD MOTOR CO.
11. Remove and discard the 2 LH and RH catalytic converter-to-exhaust manifold nuts.
NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.
Fig 8: Locating Transmission Mount-To-Crossmember Nuts
Courtesy of FORD MOTOR CO.
12. Loosen the 2 transmission mount-to-crossmember nuts.

    RH engine support insulator

13. Remove the Air Conditioning (A/C) compressor belt. For additional information, REFER to ACCESSORY DRIVE .
14. Remove the 3 bolts and position the A/C compressor aside.

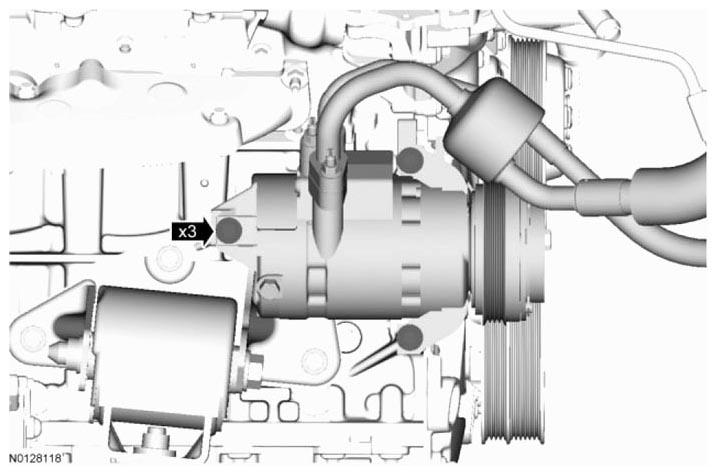

    Fig 9: Locating A/C Compressor And Bolts

    Courtesy of FORD MOTOR CO.
15. Remove the starter. For additional information, REFER to STARTING SYSTEM .
NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to cylinder block bracket can occur.
16. Remove the RH and LH engine support insulator through bolts.
NOTE: Only use hand tools when removing or installing the engine support insulator nuts or damage to the engine support insulator can occur.
NOTE: Only use hand tools when removing or installing the engine support insulator stud bolts or damage to the engine support insulator can occur.
Fig 10: Locating RH Engine Support Insulator Nuts And Stud Bolts
Courtesy of FORD MOTOR CO.
17. Remove the 2 RH engine support insulator nuts and stud bolts.
18. Raise the engine approximately 30 mm (1.18 in).
19. Remove the RH engine support insulator.
20. Remove the 4 bolts and the RH engine support insulator-to-cylinder block bracket.

    LH engine support insulator

NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to cylinder block bracket can occur.
21. Remove the LH and RH engine support insulator through bolts.
22. Raise the engine approximately 30 mm (1.18 in).
NOTE: Only use hand tools when removing or installing the engine support insulator-to-frame bolts or damage to the engine support insulator-to-frame nut plate can occur.
Fig 11: Locating LH Engine Support Insulator-To-Frame Bolts
Courtesy of FORD MOTOR CO.
23. Remove the 3 LH engine support insulator-to-frame bolts.

    Four-Wheel Drive (4WD) - LH engine support insulator

24. Position a suitable hydraulic jack under the front axle. Securely strap the jack to the axle.
    Fig 12: Positioning Suitable Hydraulic Jack Under Front Axle

    Courtesy of FORD MOTOR CO.
25. Remove the upper front axle carrier mounting bushing bolt.
    Fig 13: Locating Upper Front Axle Carrier Mounting Bushing Bolt

    Courtesy of FORD MOTOR CO.
26. Remove the axle shaft housing carrier bushing bolt.
    Fig 14: Locating Axle Shaft Housing Carrier Bushing Bolt

    Courtesy of FORD MOTOR CO.
27. Remove the lower front axle carrier mounting bushing bolt.
    Fig 15: Locating Lower Front Axle Carrier Mounting Bushing Bolt

    Courtesy of FORD MOTOR CO.
28. Lower the front axle to allow clearance to the LH engine support insulator.

    LH engine support insulator

29. Remove the LH engine support insulator.
    Fig 16: Locating LH Engine Support Insulator

    Courtesy of FORD MOTOR CO.
30. Inspect the engine support insulator-to-frame nut plate for thread damage. If the nut plate is damaged, bend 2 tabs back and remove the nut plate. Replace the nut plate with service part number 56190 and bend the 2 tabs back to the original position.

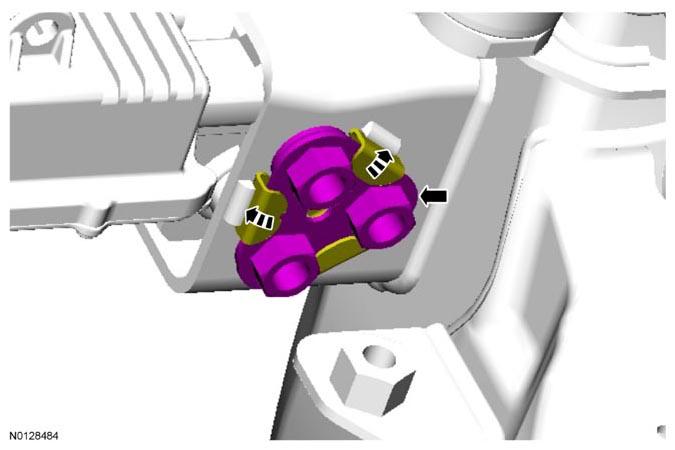

    Fig 17: Removing Engine Support Insulator-To-Frame Nut Plate

    Courtesy of FORD MOTOR CO.
    NOTE: If necessary, the following 3 steps are to remove the LH engine support insulator-to-cylinder block bracket.
31. Detach the generator wiring harness from the engine front cover.
    • Detach the generator wiring harness retainer from the oil filter adapter.
      Fig 18: Locating Generator Wiring Harness

      Courtesy of FORD MOTOR CO.
32. Detach the generator wiring harness retainer from the lower LH side of the engine block.
    Fig 19: Locating Generator Wiring Harness Retainer

    Courtesy of FORD MOTOR CO.
33. Remove the 4 bolts and the LH engine support insulator-to-cylinder block bracket.
