Cylinder Head - RH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Heated Oxygen Sensor (HO2S) electrical connector (part of 14A411) (2 required) |
| 2 | W714265 | Catalytic converter-to-exhaust manifold nuts (4 required) - 45 Nm (35 lb-ft) |
| 3 | 5F250 | Catalytic converter assembly (Y-pipe) |

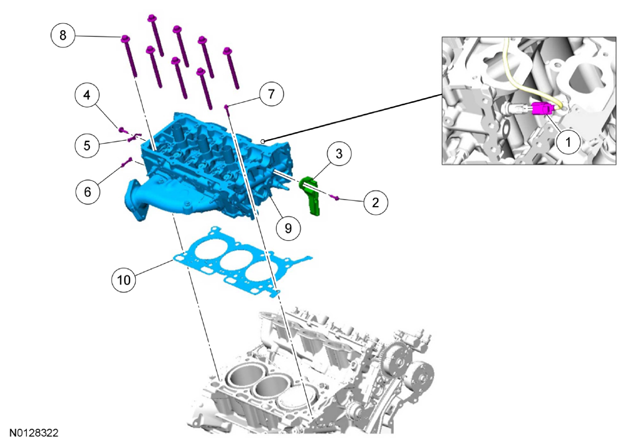

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cylinder Head Temperature (CHT) sensor electrical connector (part of 14A411) |
| 2 | W715118 | RH primary timing chain guide bolt - 10 Nm (89 lb-in) |
| 3 | 6K297 | RH upper primary timing chain guide |
| 4 | W705661 | Ground wire bolt - 10 Nm (89 lb-in) |
| 5 | 19A095 | Ground wire |
| 6 | - | Wiring harness retainer (part of 15525) |
| 7 | W710702 | Cylinder head M6 bolt |
| 8 | 6065 | Cylinder head bolt (8 required) |
| 9 | 6049 | Cylinder head |
| 10 | 6051 | Cylinder head gasket |
