Cylinder Head - RH: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.
  1. Install a new gasket, the RH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
    • Stage 3: Tighten 90 degrees.
    • Stage 4: Tighten 90 degrees
    • Stage 5: Tighten 45 degrees.
      Fig 1: Identifying RH Cylinder Head Bolts Tightening Sequence
      G07958770Courtesy of FORD MOTOR CO.
  2. Install the M6 bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Locating RH Cylinder Head M6 Bolt
      G07958768Courtesy of FORD MOTOR CO.
  3. NOTE: The valve tappets must be installed in their original positions.
    NOTE: Coat the valve tappets with clean engine oil prior to installation.

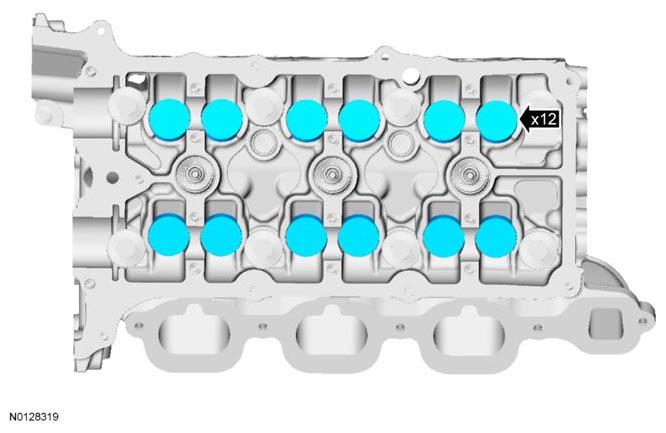

    Fig 3: Locating RH Valve Tappets
    G07958767Courtesy of FORD MOTOR CO.
  4. Install the RH valve tappets.
  5. Install the ground wire and bolt to the rear of the RH cylinder head.
    • Tighten to 10 Nm (89 lb-in).
  6. NOTE: Lubricate the 2 CMP sensor O-ring seals with clean engine oil.
  7. Install the 2 RH CMP sensors and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

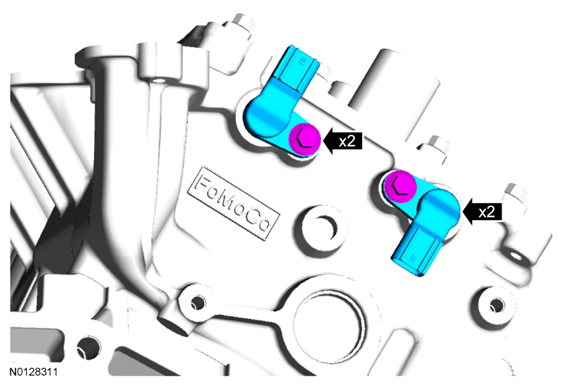

      Fig 4: Locating RH CMP Sensors And Bolts
      G07959741Courtesy of FORD MOTOR CO.
  8. Connect the 2 RH CMP sensors electrical connectors.

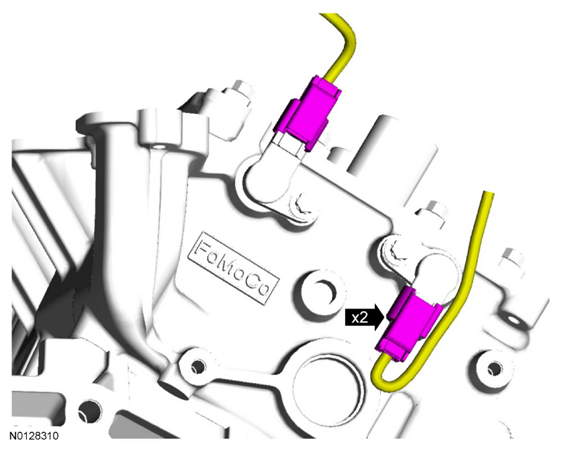

    Fig 5: Locating RH Camshaft Position Sensors Electrical Connectors
    G07959740Courtesy of FORD MOTOR CO.
  9. Install the RH upper primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).
  10. Connect the CHT sensor electrical connector.
  11. Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD  .
  12. Install the RH camshafts. For additional information, refer to CAMSHAFT - RH  .
  13. Raise the catalytic converter and install the new LH and RH catalytic converter-to-exhaust manifold nuts.
    • Tighten to 45 Nm (35 lb-ft).
  14. Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the 2 new bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt to 63 Nm (46 lb-ft).
    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt to 63 Nm (46 lb-ft).
      Fig 6: Locating Exhaust Y-Pipe Dual Catalytic Converter-To-Exhaust Intermediate Pipe Bolts
      G07959726Courtesy of FORD MOTOR CO.
  15. Connect and attach the RH and LH HO2S electrical connectors.
  16. Connect the battery ground cable. For additional information, REFER to BATTERY, MOUNTING AND CABLES .
