Cylinder Head - LH: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada)	WSS-M2C945-A

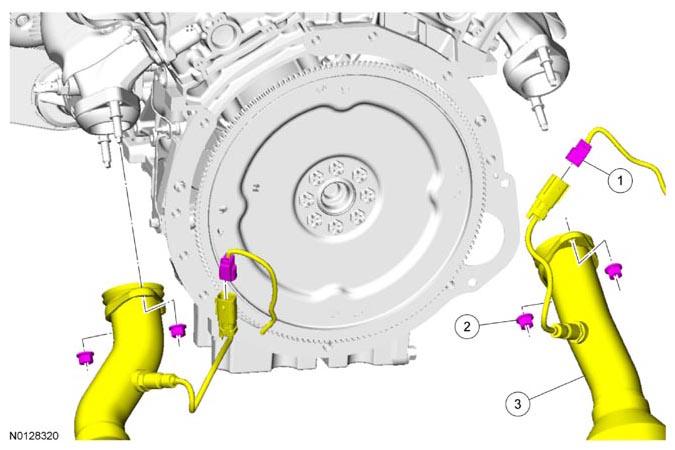

Fig 1: Identifying LH Cylinder Head Related Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Heated Oxygen Sensor (HO2S) electrical connector (part of 14A411) (2 required)
2	W714265	Catalytic converter-to-exhaust manifold nuts (4 required) - 45 Nm (35 lb-ft)
3	5F250	Catalytic converter assembly (Y-pipe)

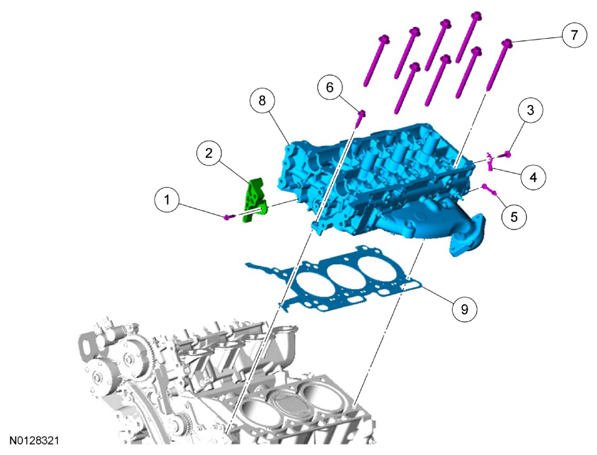

Fig 2: Identifying LH Cylinder Head Related Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709818	LH upper primary timing chain guide bolt - 10 Nm (89 lb-in)
2	6K297	LH upper primary timing chain guide
3	W707193	Ground strap bolt - 10 Nm (89 lb-in)
4	19A095	Ground strap
5	-	Wiring harness retainer (part of 14A411)
6	W710702	Cylinder head M6 bolt
7	6065	Cylinder head bolt (8 required)
8	6049	Cylinder head
9	6051	Cylinder head gasket
