Cylinder Head: Assembly

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

    NOTE: If the components are to being reinstalled, they must be installed into their original location.
    NOTE: Lubricate the valve stem and valve stem seal with clean engine oil prior to installation.
    Fig 1: Installing Valve Stem Seal
    G07958749Courtesy of FORD MOTOR CO.
  1. Using the Valve Stem Oil Seal Installer, install a new valve stem seal.
  2. Install the valve.
  3. Using the Valve Spring Compressors, install the valve spring, retainer and key.
    Fig 2: Installing Keys, Retainer And Spring Using Valve Spring Compressors
    G07959176Courtesy of FORD MOTOR CO.
  4. Repeat the above steps for each valve.
  5. Install the timing chain guide pin and tighten in 2 stages.
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten an additional 60 degrees.

    RH cylinder head

  6. Install the engine lift eye and the 2 bolts.
    • Tighten to 25 Nm (18 lb-ft).

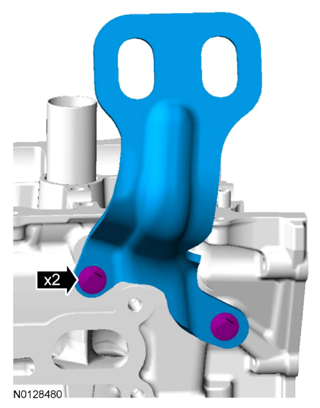

      Fig 3: Locating Engine Lift Eye Bolts
      G07960115Courtesy of FORD MOTOR CO.
  7. Install a new CHT sensor.
    • Tighten to 10 Nm (89 lb-in).
  8. Install the timing chain tensioner arm pin and tighten in 2 stages.
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten an additional 60 degrees.
  9. Install 6 new RH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).
  10. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
  11. Using a new gasket, install the RH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration:
    • Stage 1: Tighten to 19 Nm (168 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
      Fig 4: Identifying RH Exhaust Manifold Nuts Tightening Sequence
      G07960119Courtesy of FORD MOTOR CO.
  12. Install the RH exhaust manifold heat shield and the 2 bolts.
    • Tighten to 12 Nm (106 lb-in).

    LH cylinder head

  13. Install 6 new LH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).
  14. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
  15. Using a new gasket, install the LH exhaust manifold and 6 new nuts. Tighten in 2 stages in the sequence shown in illustration:
    • Stage 1: Tighten to 19 Nm (168 lb-in).
    • Stage 2: Tighten to 25 Nm (18 lb-ft).
      Fig 5: Identifying LH Exhaust Manifold Nuts Tightening Sequence
      G07960120Courtesy of FORD MOTOR CO.
  16. Install the LH exhaust manifold heat shield and the 2 bolts.
    • Tighten to 12 Nm (106 lb-in).
