Vehicle Certification (VC) Label Locator

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

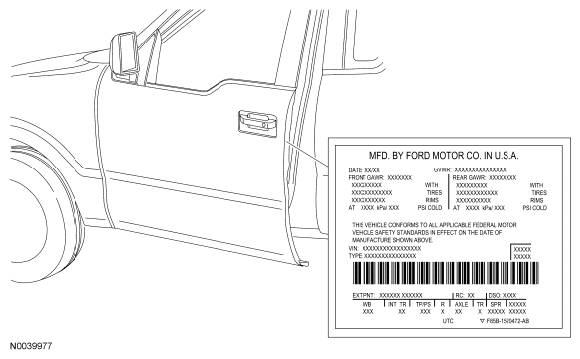

Fig 1: Identifying Vehicle Certification (VC) Label Locator

Courtesy of FORD MOTOR CO.

Fig 2: Identifying VC Label Number And Codes

Courtesy of FORD MOTOR CO.

Item	Description
1	Exterior paint code
2	Region code
3	District Special Order (DSO)
4	Wheelbase code
5	Interior trim code
6	Tape/paint stripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

The Vehicle Certification (VC) label contains information on the manufacturer name, the month and year of manufacture, the certification statement and the Vehicle Identification Number (VIN). This label also includes Gross Vehicle Weight Rating (GVWR) information.

If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
