Safety Belt Retractor - Rear: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

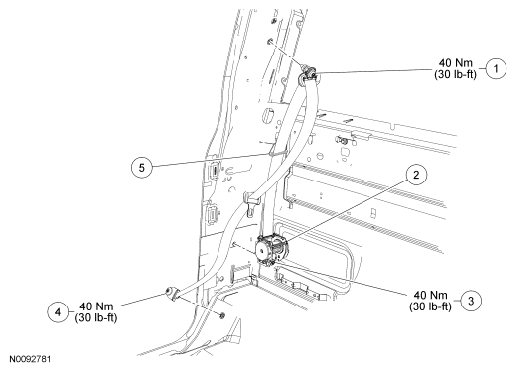

RH shown in illustration, LH similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
D-ring bolt (part of 611B68) |
| 2 |
611B68 |
Safety belt retractor |
| 3 |
- |
Safety belt retractor bolt (part of 611B68) |
| 4 |
- |
Safety belt retractor anchor bolt (part of 611B68) |
| 5 |
- |
Safety belt guide |
