Safety Belt Retractor and Pretensioner - Front, Crew Cab: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH shown in illustration, LH similar.

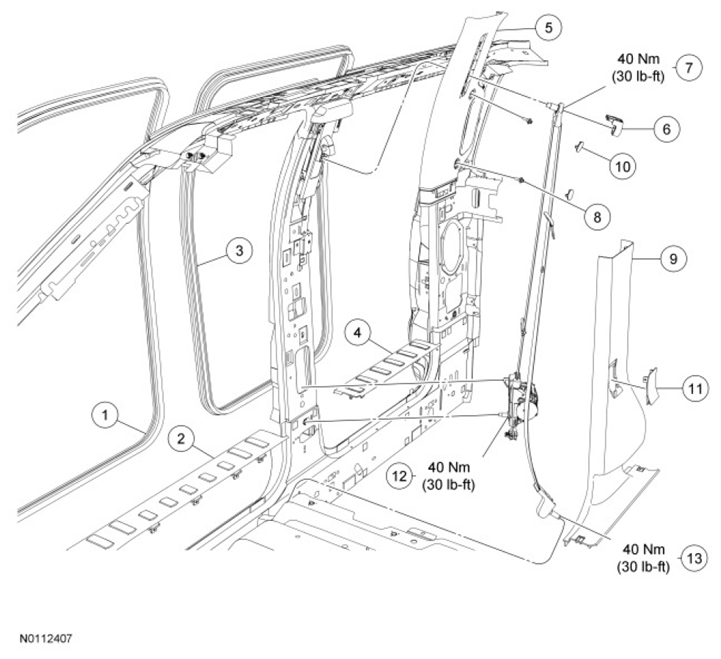

Fig 1: Exploded View Of Safety Belt Retractor And Pretensioner With Torque Specifications - Front, Crew Cab
| Item | Part Number | Description |
|---|---|---|
| 1 | 20708 | Front door opening weather-strip |
| 2 | 13208 RH/ 13209 LH | Front door opening scuff plate |
| 3 | 25324 | Rear door opening weather-strip |
| 4 | 13228 RH/ 13229 LH | Rear door opening scuff plate |
| 5 | 278D12 RH/ 278D13 LH | Upper B-pillar trim panel |
| 6 | 60262 | D-ring cover |
| 7 | - | D-ring bolt (part of 611B08 RH/ 611B09 LH) |
| 8 | - | Screw (2 required) |
| 9 | 278D12 RH/ 278D13 LH | Lower B-pillar trim panel |
| 10 | 31458 | Screw cover (2 required) |
| 11 | 62220 | Safety belt bezel |
| 12 | - | Safety belt retractor and pretensioner bolt (part of 611B08 RH/ 611B09 LH) |
| 13 | - | Safety belt retractor and pretensioner anchor bolt (part of 611B08 RH/ 611B09 LH) |
