Safety Belt Retractor - Rear, Outboard, SuperCab: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

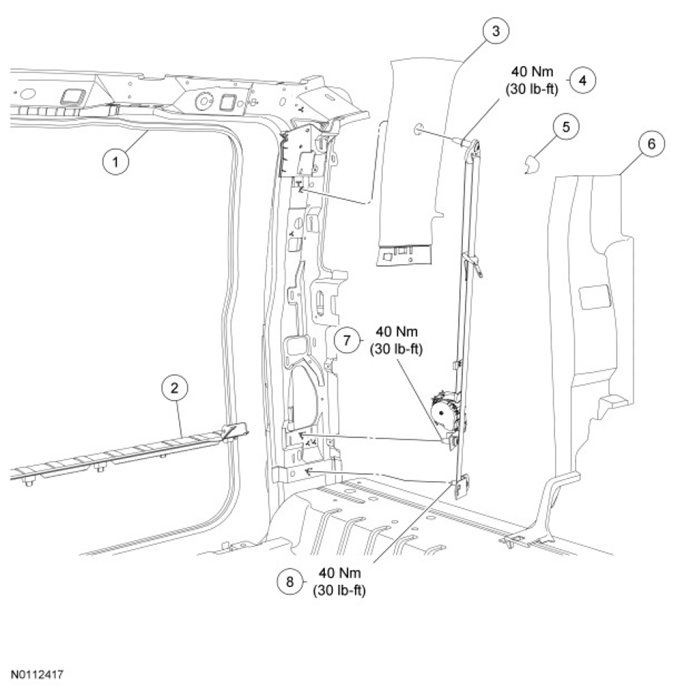

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 20708 RH/ 20709 LH | Rear door opening weather-strip |
| 2 | 13208 RH/ 13209 LH | Rear door opening scuff plate |
| 3 | 278D12 RH/ 278D13 LH | Upper B-pillar trim panel |
| 4 | - | Safety belt retractor D-ring bolt (part of 611B68 RH/ 611B69 LH) |
| 5 | 60262 | D-ring cover |
| 6 | 278D12 RH/ 278D13 LH | Lower B-pillar trim panel |
| 7 | - | Safety belt retractor bolt (part of 611B68 RH/ 611B69 LH) |
| 8 | - | Safety belt retractor anchor bolt (part of 611B68 RH/ 611B69 LH) |
