Safety Belt Retractor - Rear, Center: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

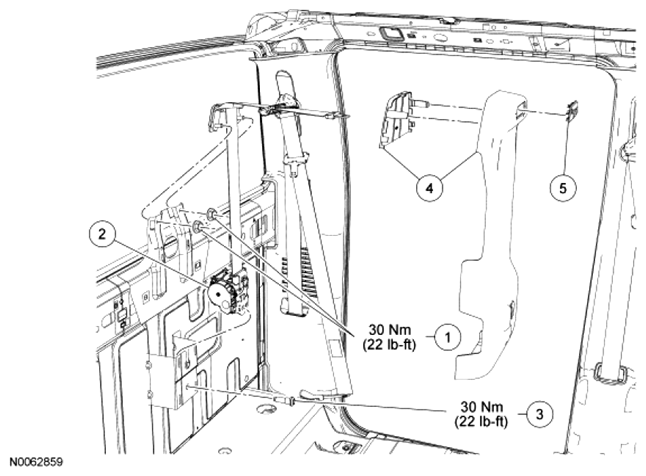

Crew Cab shown in illustration, SuperCab similar.
NOTE:
Seat removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520112 | Center safety belt retractor D-ring nuts |
| 2 | 611B64 | Center safety belt retractor |
| 3 | W505275 | Center safety belt retractor bolt |
| 4 | 601B32 | Center safety belt retractor cover |
| 5 | 60220 | Center safety belt retractor bezel |
