Child Safety Seat Tether Anchor - SuperCab: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: SuperCab vehicle child safety seat tether anchors are bolted in place. Regular cab and Crew Cab child safety seat tether anchors are part of the back panel sheet metal.

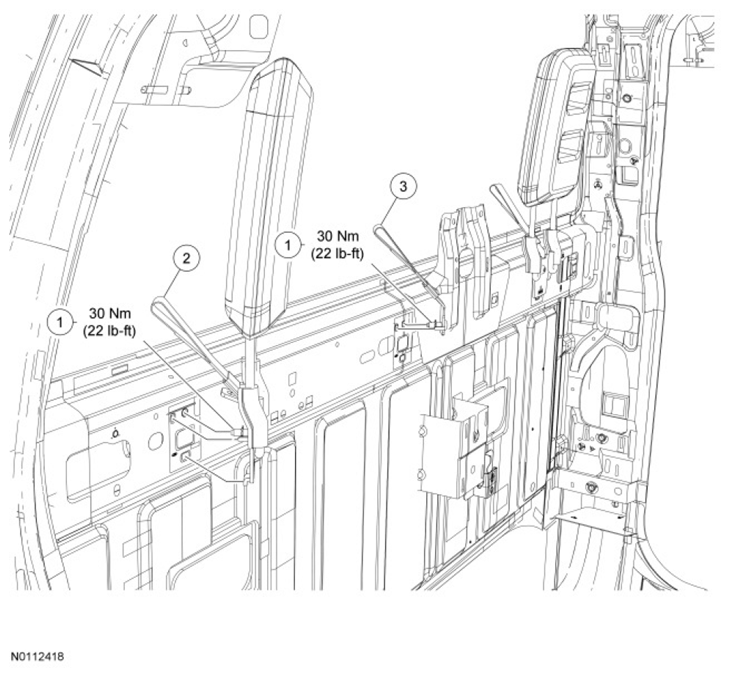

Fig 1: Child Safety Seat Tether Anchor, Head Restraint And Bolt With Torque Specifications
G07486234Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Child safety seat tether anchor bolt (part of 613D20)
2 613D20 Child safety seat tether anchor with head restraint (2 required)
3 613D20 Child safety seat tether anchor
