Window Glass - Rear Door, SuperCab: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the release liner from the butyl seal around the window before installing the window.

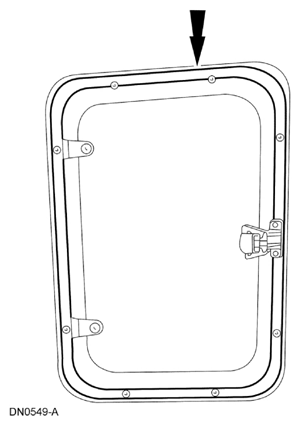

    Fig 1: Locating Seal Around Window
    G07975330Courtesy of FORD MOTOR CO.
  2. Install the window frame and glass.
    • Position the window frame and glass.
      • NOTE: Loosely install nuts and clips before tightening.
    • Tighten the nuts.
  3. Install the rear door upper trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  4. Clean excess butyl from window area.
