Pinpoint Test E: A Single Power Window Is Inoperative - LH Or RH Rear

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

E1 CHECK THE VOLTAGE TO THE LH OR RH REAR WINDOW CONTROL SWITCH
- Disconnect: Inoperative Rear Window Control Switch C701 (LH) or C801 (RH).
- Ignition ON.
- For an inoperative LH rear window, measure the voltage between LH rear window control switch C701-3, circuit CPW14 (VT/WH), harness side and ground.
- For an inoperative RH rear window, measure the voltage between RH rear window control switch C801-3, circuit CPW14 (VT/WH), harness side and ground.

  Fig 1: Measuring Voltage Between RH Rear Window Control Switch C801-3, Circuit CPW14 (VT/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the voltage greater than 10 volts?
- Yes : GO to E2.
- No : REPAIR the circuit. TEST the system for normal operation.
E2 CHECK THE GROUNDS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH
- Ignition OFF.
- For an inoperative LH rear window, measure the resistance between LH rear window control switch C701-6, circuit CPW16 (BU/OG), harness side and ground; and between LH rear window control switch C701-1, circuit CPW15 (YE), harness side and ground.
- For an inoperative RH rear window, measure the resistance between RH rear window control switch C801-6, circuit CPW18 (GY/VT), harness side and ground; and between RH rear window control switch C801-1, circuit CPW17 (BN/GN), harness side and ground.

  Fig 2: Measuring Resistance Between RH Rear Window Control Switch C801-6, Circuit CPW18 (GY/VT), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Are the resistances less than 5 ohms?
- Yes : GO to E3.
- No : REPAIR the circuit(s). TEST the system for normal operation.

E3 CHECK THE CIRCUITS TO THE INOPERATIVE REAR WINDOW CONTROL SWITCH FOR AN OPEN

Ignition OFF.
Disconnect: LH Front Window Control Switch C504B.

For an inoperative LH rear window, measure the resistance between LH front window control switch C504B, harness side and LH rear window control switch C701, harness side using the following chart:

LH Rear Window Control Switch	Circuit	LH Front Window Control Switch
C701-6	CPW16 (BU/OG)	C504B-6
C701-1	CPW15 (YE)	C504B-1

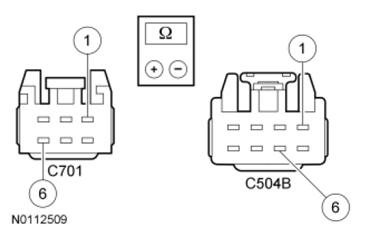

Fig 3: Measuring Resistance Between LH Front Window Control Switch C504B And LH Rear Window Control Switch C701

Courtesy of FORD MOTOR CO.

For an inoperative RH rear window, measure the resistance between LH front window control switch C504B, harness side and RH rear window control switch C801, harness side using the following chart:

RH Rear Window Control Switch	Circuit	LH Front Window Control Switch
C801-6	CPW18 (GY/VT)	C504B-8
C801-1	CPW17 (BN/GN)	C504B-4

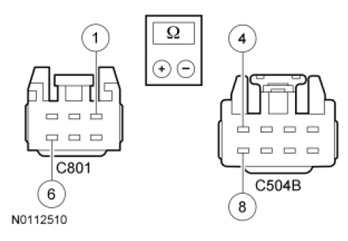

Fig 4: Measuring Resistance Between LH Front Window Control Switch C504B And RH Rear Window Control Switch C801

Courtesy of FORD MOTOR CO.

Are the resistances less than 5 ohms?

Yes : GO to E4.
No : REPAIR the circuit(s). TEST the system for normal operation.

E4 CHECK THE INOPERATIVE WINDOW CONTROL SWITCH
NOTE: Set the window lock switch to the UNLOCK position.
- Ignition ON.
- For an inoperative RH rear window, connect a fused jumper wire between RH rear window control switch C801-1, circuit CPW17 (BN/GN) and RH rear window control switch C801-5, circuit CPW24 (WH/VT); and between RH rear window control switch C801-3, circuit CPW14 (VT/WH) and RH rear window control switch C801-2, circuit CPW23 (GY). The RH rear window should operate in the downward direction.

  Fig 5: Connecting Fused Jumper Wire Between RH Rear Window Control Switch C801-1, Circuit CPW17 (BN/GN) And RH Rear Window Control Switch C801-5, Circuit CPW24 (WH/VT)
  Courtesy of FORD MOTOR CO.
- For an inoperative LH rear window, connect a fused jumper wire between LH rear window control switch C701-1, circuit CPW15 (YE) and LH rear window control switch C701-5, circuit CPW22 (GN/VT); and between LH rear window control switch C701-3, circuit CPW14 (VT/WH) and LH rear window control switch C701-2, circuit CPW21 (BN). The LH rear window should operate in the downward direction.

  Fig 6: Connecting Fused Jumper Wire Between LH Rear Window Control Switch C701-1, Circuit CPW15 (YE) And LH Rear Window Control Switch C701-5, Circuit CPW22 (GN/VT)
  Courtesy of FORD MOTOR CO.
- For an inoperative RH rear window, connect a fused jumper wire between RH rear window control switch C801-6, circuit CPW18 (GY/VT) and RH rear window control switch C801-2, circuit CPW23 (GY); and between RH rear window control switch C801-3, circuit CPW14 (VT/WH) and RH rear window control switch C801-5, circuit CPW24 (WH/VT). The RH rear window should operate in the upward direction.

  Fig 7: Connecting Fused Jumper Wire Between RH Rear Window Control Switch C801-6, Circuit CPW18 (GY/VT) And RH Rear Window Control Switch C801-2, Circuit CPW23 (GY)
  Courtesy of FORD MOTOR CO.
- For an inoperative LH rear window, connect a fused jumper wire between LH rear window control switch C701-6, circuit CPW16 (BU/OG) and LH rear window control switch C701-2, circuit CPW21 (BN); and between LH rear window control switch C701-3, circuit CPW14 (VT/WH) and LH rear window control switch C701-5, circuit CPW22 (GN/VT). The LH rear window should operate in the upward direction.

  Fig 8: Connecting Fused Jumper Wire Between LH Rear Window Control Switch C701-6, Circuit CPW16 (BU/OG) And LH Rear Window Control Switch C701-2, Circuit CPW21 (BN)
  Courtesy of FORD MOTOR CO.
- Does the window operate correctly?
- Yes : If the rear window did not operate with the rear window control switch, INSTALL a new rear window control switch. If the rear window operated with the rear window control switch but not with the LH front window control switch, INSTALL a new LH front window control switch. REFER to WINDOW CONTROL SWITCH . TEST the system for normal operation.
- No : GO to E5.
E5 CHECK THE POWER WINDOW MOTOR CIRCUITS
- Ignition OFF.
- Disconnect: Inoperative Rear Window Motor C703 (LH) or C803 (RH).
- For an inoperative LH rear window motor, measure the resistance between LH rear window control switch C701-5, circuit CPW22 (GN/VT) and LH rear window motor C703-2, circuit CPW22 (GN/VT), harness side.
- For an inoperative RH rear window motor, measure the resistance between RH rear window control switch C801-5, circuit CPW24 (WH/VT) and RH rear window motor C803-2, circuit CPW24 (WH/VT), harness side.

  Fig 9: Measuring Resistance Between RH Rear Window Control Switch C801-5, Circuit CPW24 (WH/VT) And RH Rear Window Motor C803-2, Circuit CPW24 (WH/VT)
  Courtesy of FORD MOTOR CO.
- For an inoperative LH rear window motor, measure the resistance between LH rear window control switch C701-2, circuit CPW21 (BN) and LH rear window motor C703-1, circuit CPW21 (BN), harness side.
- For an inoperative RH rear window motor, measure the resistance between RH rear window control switch C801-2, circuit CPW23 (GY) and RH rear window motor C803-1, circuit CPW23 (GY), harness side.

  Fig 10: Measuring Resistance Between RH Rear Window Control Switch C801-2, Circuit CPW23 (GY) And RH Rear Window Motor C803-1, Circuit CPW23 (GY)
  Courtesy of FORD MOTOR CO.
- Are the resistances less than 5 ohms?
- Yes : INSTALL a new RH or LH rear window regulator and motor. REFER to WINDOW REGULATOR AND MOTOR - REAR DOOR . TEST the system for normal operation.
- No : REPAIR the circuit(s). TEST the system for normal operation.
