Transfer Case Shift Lever: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

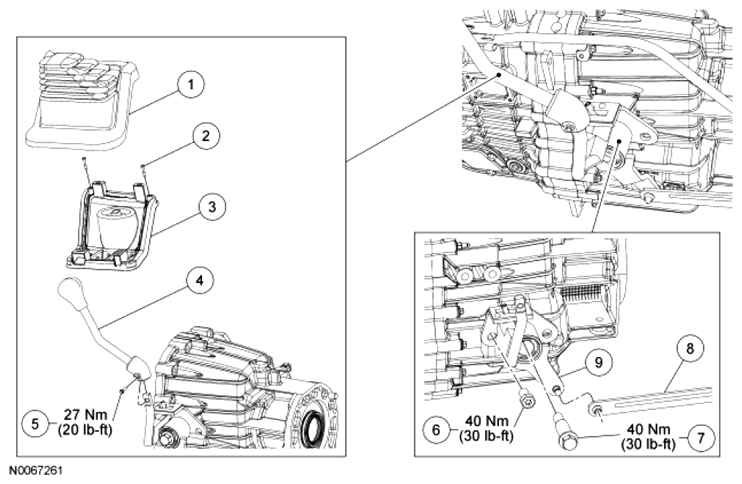

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Shift lever boot and bezel |
| 2 | - | Inner shift lever boot and bracket screw |
| 3 | 7D117 | Inner shift lever boot and bracket |
| 4 | 7E067 | Shift lever |
| 5 | - | Shift lever bolt |
| 6 | - | Transfer case control bracket bolt |
| 7 | - | Transfer case control pivot bolt |
| 8 | 7A315 | Shift linkage |
| 9 | 7E069 | Transfer case control |
