Transfer Case Shift Lever: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not tighten the bolt that attaches the transfer case control lever assembly to the transmission case at this time.
  1. Position the transfer case control to the transmission. Align the new transfer case control pivot bolt over the correct mounting hole in the transmission case and start the bolt into the threaded hole by hand.
    1. For vehicles with a gasoline engine and manual transmission, or a diesel engine and manual or automatic transmission, install the new bolt in the forward (LH) threaded hole in the transmission case.
    2. For vehicles with a gasoline engine and automatic transmission, install the new bolt in the rearward (RH) threaded hole in the transmission case.
      Fig 1: Positioning Transfer Case Control To Transmission
      G06779108Courtesy of FORD MOTOR CO.
  2. Position the transfer case control bracket bolt in the unused threaded hole in the transmission case.
    • For vehicles with a gasoline engine and manual transmission, or a diesel engine and manual or automatic transmission, position the pin in the rearward (RH) threaded hole in the transmission case.
    • For vehicles with a gasoline engine and automatic transmission, position the pin in the forward (LH) threaded hole in the transmission case.
    3. NOTE: Verify that the transfer case is still in 4H.

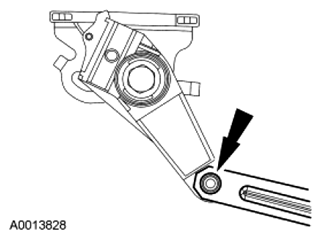

    Fig 2: Locating Bolt For Connect Shift Linkage To Lower Shifter Arm
    G06779109Courtesy of FORD MOTOR CO.
  3. Connect the shift linkage to the lower shifter arm.
    4. NOTE: Make sure the transfer case is in 4H. Hold the control lever against the 4H detent while tightening the bolt. This will make sure of correct transfer case gear engagement during transfer case operation.
  4. Hold the control lever against the 4H detent while tightening the transfer case control lever pivot bolt.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 3: Locating Transfer Case Control Lever Pivot Bolt
      G06779110Courtesy of FORD MOTOR CO.
  5. Install the transfer case control bracket bolt.
    • Tighten to 40 Nm (30 lb-ft).
  6. Position the shift lever with the bezel and boot assemblies. Install the shift lever bolt.
    • Tighten to 27 Nm (20 lb-ft).
  7. Slide the inner shift lever boot and bracket into position and install the 2 screws.
  8. Install the shift lever boot and bezel.
  9. Verify the shift sequence from 2H to 4L to 2H.
