Transfer Case Rear Output Shaft Seal: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Flange Remover 205-076 |
|
| Handle 205-153 (T80T-4000-W) |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Output Shaft Oil Seal 308-403 |
|
| Remover, Torque Converter Oil Seal 307-309 (T94P-77001-BH) |
|
| Slide Hammer 100-001 (T50T-100-A) |

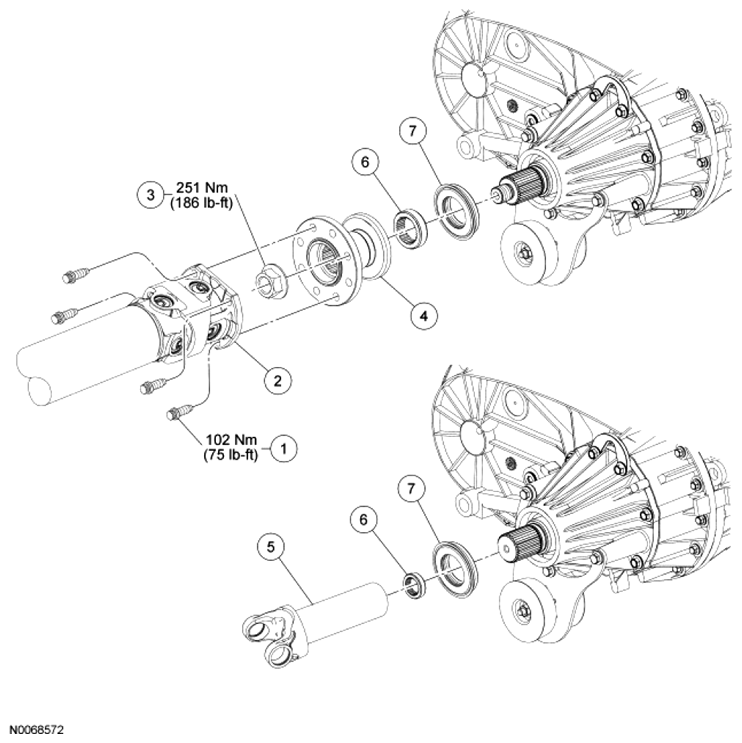

| Item | Part Number | Description |
|---|---|---|
| 1 | N811880-S | Rear driveshaft flange bolt (4 required) |
| 2 | 4602 | Rear driveshaft |
| 3 | 7045 | Rear output flange nut |
| 4 | 7B214 | Flange |
| 5 | 7B214 | Slip yoke |
| 6 | - | Shipping seal |
| 7 | 7B215 | Rear output shaft seal |
