Message Center Switch: Notes

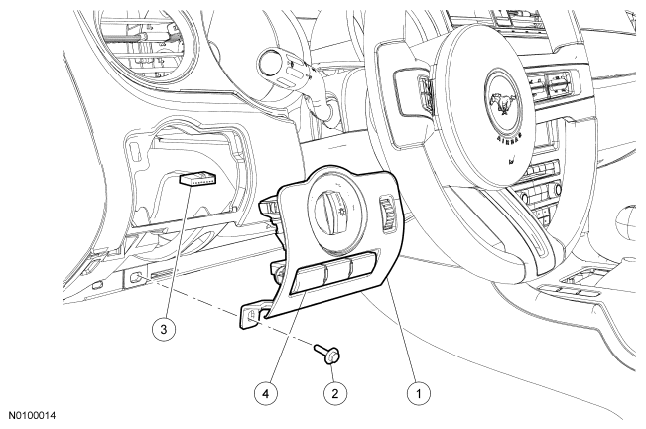

Fig 1: Identifying Message Center Switch Related Components
G06403560Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7804338 Headlamp switch bezel
2 W705314 Headlamp switch bezel screw
3 - Electrical connector (part of 14401)
4 18578 Message center switch
