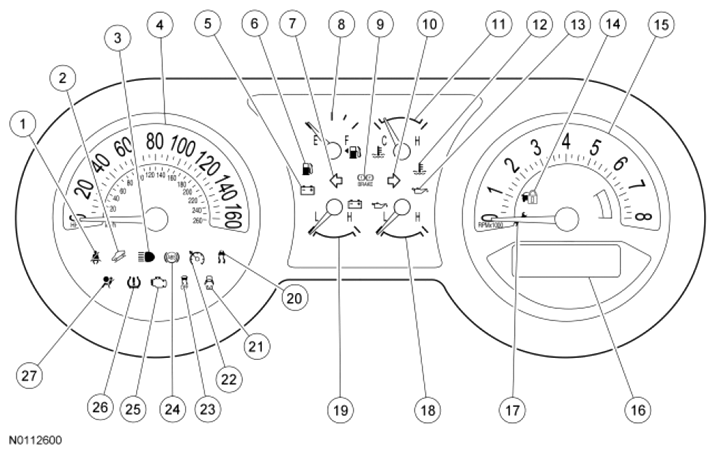

| 1 |
- |
Safety belt warning indicator |
| 2 |
- |
Grade assist indicator |
| 3 |
- |
High beam indicator |
| 4 |
- |
Speedometer |
| 5 |
- |
Charging system warning indicator |
| 6 |
- |
Low fuel warning indicator |
| 7 |
- |
LH turn indicator |
| 8 |
- |
Fuel gauge |
| 9 |
- |
Brake warning indicator |
| 10 |
- |
RH turn indicator |
| 11 |
- |
Engine coolant temperature gauge |
| 12 |
- |
Engine over temperature warning indicator |
| 13 |
- |
Low oil pressure warning indicator |
| 14 |
- |
Anti-theft indicator |
| 15 |
- |
Tachometer |
| 16 |
- |
Message center display area |
| 17 |
- |
Powertrain malfunction (wrench) indicator |
| 18 |
- |
Oil pressure gauge |
| 19 |
- |
Voltage gauge |
| 20 |
- |
Stability/traction control indicator (sliding car icon) |
| 21 |
- |
Door ajar warning indicator |
| 22 |
- |
Cruise control indicator |
| 23 |
- |
Stability/traction control disabled indicator (sliding car OFF icon) |
| 24 |
- |
ABS warning indicator |
| 25 |
- |
MIL |
| 26 |
- |
TPMS warning indicator |
| 27 |
- |
Air bag warning indicator |
