Parking Brake Switch: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Pull outward on the steering column opening cover detaching the 7 clips and position the cover downward.
 Courtesy of FORD MOTOR COMPANY
|

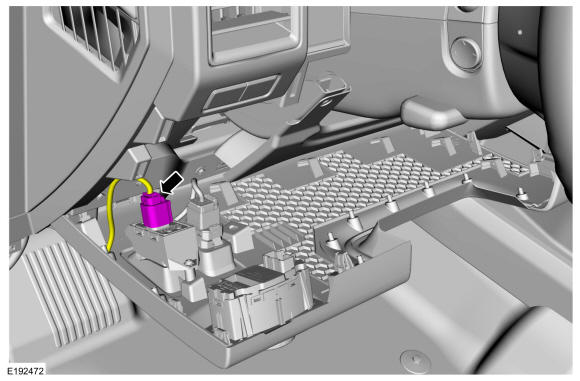

- 2.
Disconnect the EPB switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

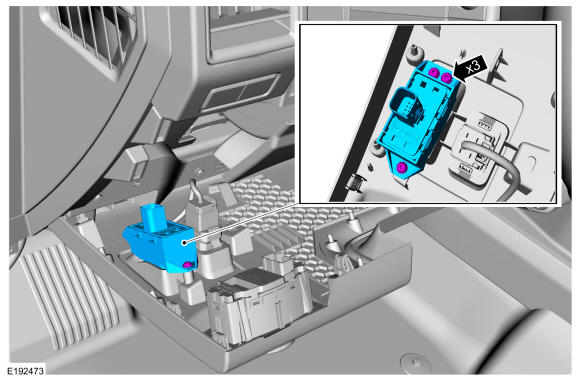

- 3.
Remove the 3 screws and the EPB switch.Torque
: 9 lb.in (1 Nm)
 Courtesy of FORD MOTOR COMPANY
|
