Parking Brake Module: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

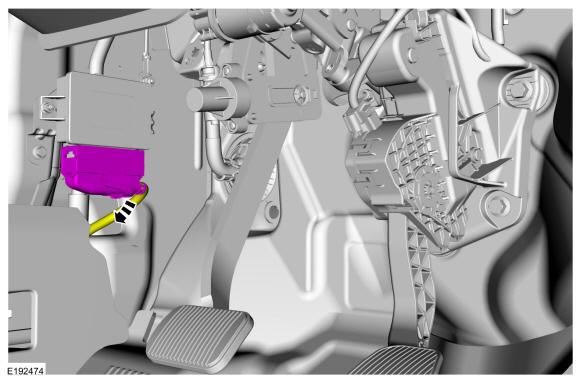

Disconnect the EPB module electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

Remove the 2 nuts and the EPB module.
Torque

: 102 lb.in (11.5 Nm)

Courtesy of FORD MOTOR COMPANY
