Section 652 (Parking Brake And Actuation - Vehicles With: Electronic Parking Brake (EPB))
>>
Description And Operation
>>

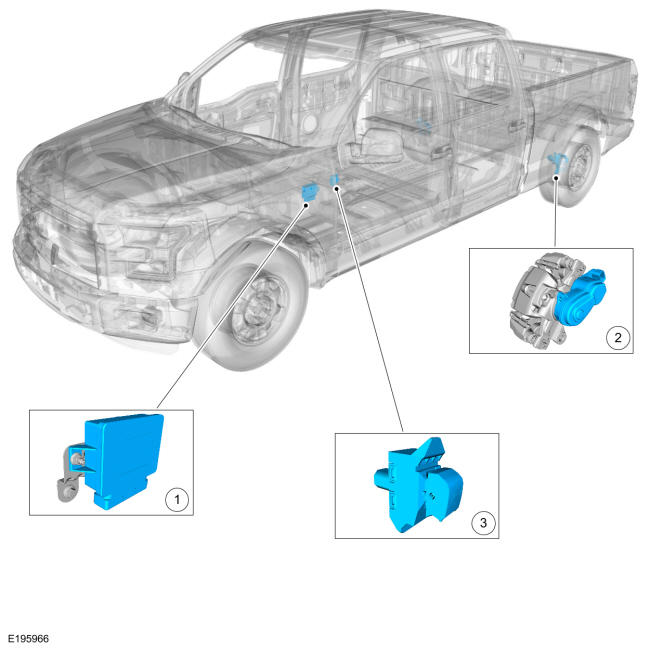

Parking Brake - Component Location
Parking Brake - Component Location
WARNING:
This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
EPB module
2
Parking brake actuator motor (2 required)
3
Parking brake switch
