Brake Booster - Vacuum: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

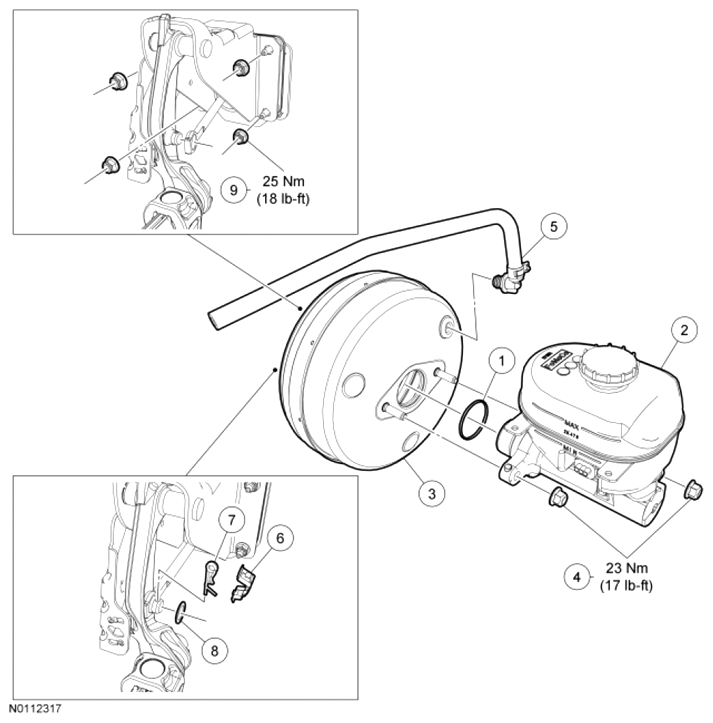

| Item | Part Number | Description |
|---|---|---|
| 1 | 2152 | Brake booster seal |
| 2 | 2140 | Brake master cylinder |
| 3 | 2005 | Vacuum brake booster |
| 4 | W520113 | Brake master cylinder nuts (2 required) |
| 5 | - | Brake booster vacuum hose (part of 9C490) |
| 6 | 3757 | Cotter pin clip |
| 7 | 380699 | Brake pedal cotter pin |
| 8 | 2L364 | Spacer |
| 9 | W520112 | Brake booster nuts (4 required) |
