Parking Brake Cable - LH: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: F250/350 shown in illustration, F450/550 similar.

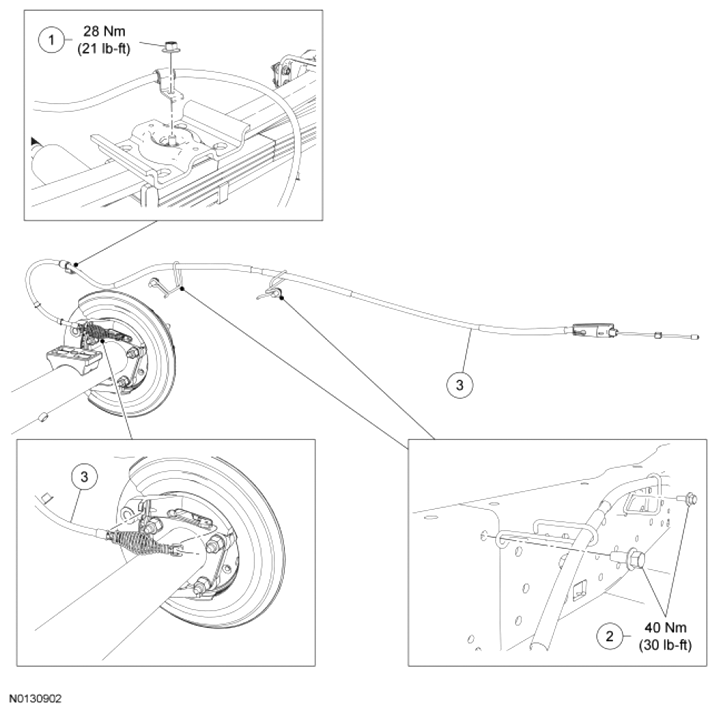

Fig 1: Parking Brake Cable With Torque Specifications - LH

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505261	LH parking brake-to-spring U-bolt plate nut
2	W505273	LH parking brake cable wire form bracket bolts
3	2A809	LH parking brake cable
