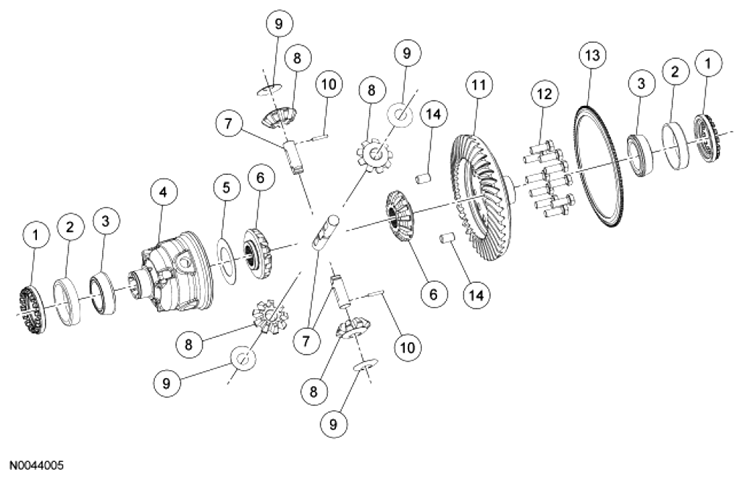

Dana Model S130 Conventional Wheel Differential Assembly, Disassembled View: Notes
WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 4067 | Differential bearing adjusting rings |
| 2 | 4222 | Differential side bearing cups |
| 3 | 4221 | Differential side bearing cones |
| 4 | 4204 | Differential case |
| 5 | 4228 | Differential side gear thrust washer |
| 6 | 4237 | Differential side gears |
| 7 | 4211 | Differential pinion shafts |
| 8 | 4215 | Differential pinion gears |
| 9 | 4230 | Differential pinion thrust washers |
| 10 | 4241 | Differential pinion shaft pins |
| 11 | 4209 | Differential ring gear |
| 12 | 4558 | Differential ring gear bolt |
| 13 | 4B409 | Anti-lock speed sensor ring |
| 14 | 132821 | Locating dowels |
