Ball Joint: Installation
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Position the ball joint into the wheel knuckle.

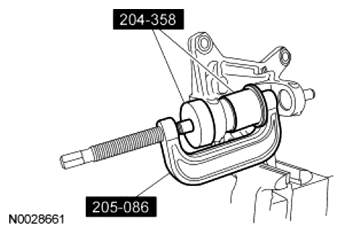

- Using the C-Frame and Screw Installer/Remover and the Ball Joint Remover/Installer, install the upper ball joint.
- Using the C-Frame and Screw Installer/Remover and the Ball Joint Remover/Installer, install the lower ball joint.
- Install the snap ring in the groove at the bottom of the lower ball joint.
- If removed, install the ball joint grease fitting.
- Install the wheel knuckle. For additional information, refer to Wheel Knuckle .
NOTE:
The grease fitting must be removed from the ball joint prior to installation or damage to the grease fitting can occur.
NOTE:
To avoid damage to components, do not use heat to aid installation.
NOTE:
Clean the wheel knuckle ball joint bore.
NOTE:
The upper ball joint must be installed first.
NOTE:
Do not overtighten the ball joint grease fitting or damage to the ball joint may occur.
