Shock Absorber - F250 & F350: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown in illustration, RH similar.

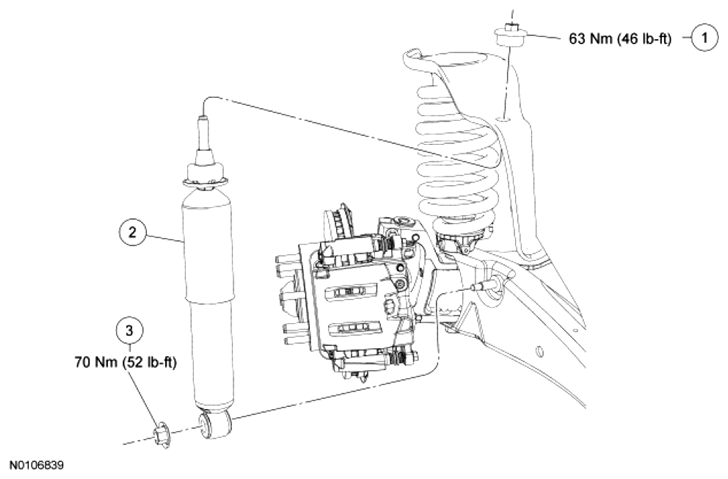

Fig 1: Shock Absorber Replacement Components With Torque Specifications (F250 And F350)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18A192	Shock absorber upper nut, washer and bushing assembly
2	18045	Shock absorber
3	N806085	Shock absorber lower nut and washer
