Connector End View (C3675) - ELECTRONIC PARK BRAKE MODULE

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

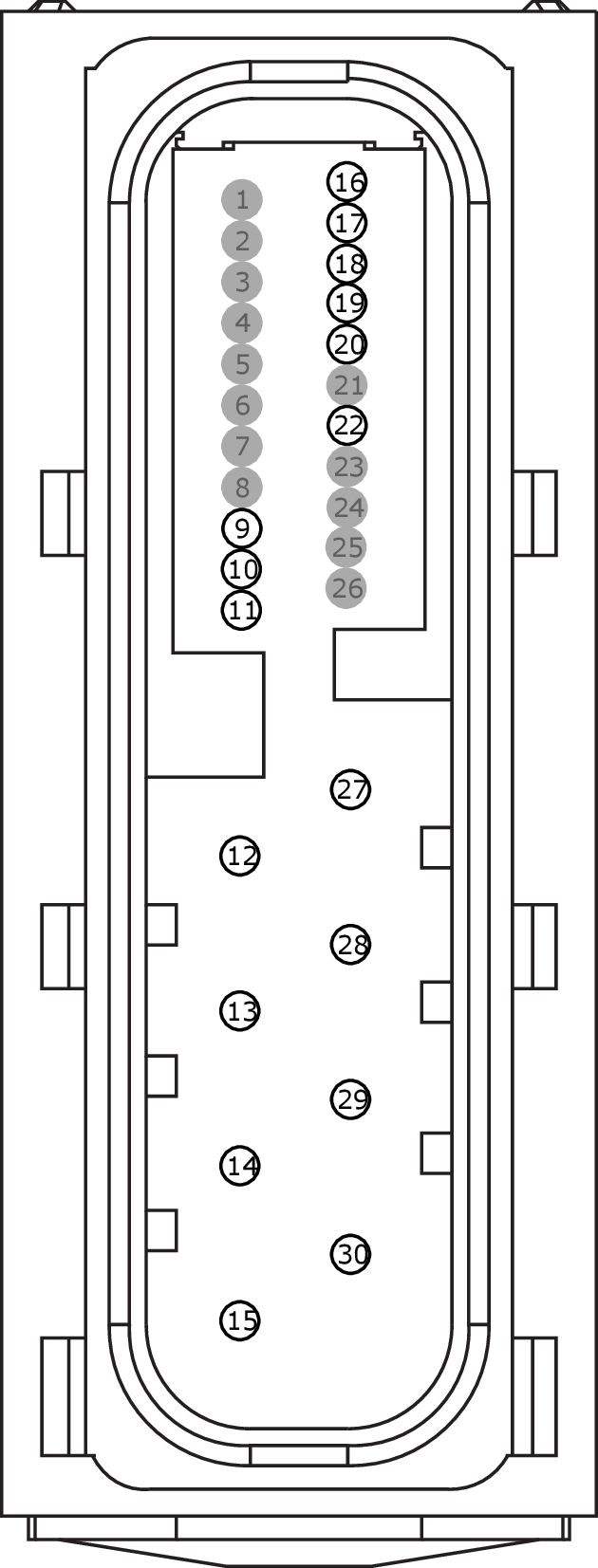

Connector:C3675

Description

ELECTRONIC PARK BRAKE MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	CCB20 (BU-WH)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1
10	CCB21 (GN-VT)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2
11	CCB23 (VT-GN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4
12	CCB18 (YE-GY)	10	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+)
13	SBB57 (RD)	14	FUSE - 57 OR CIRCUIT BREAKER
14	CCB16 (WH-VT)	10	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT LOCK (+)
15	SBB58 (BN-RD)	14	FUSE - 58 OR CIRCUIT BREAKER
16	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH
17	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW
18	CCB22 (WH-BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3
19	CCB24 (WH-OG)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5
20	CCB25 (BN)	22	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6
21	*	*	Not Used
22	CBP22 (GN-OG)	22	FUSE - 22 OR CIRCUIT BREAKER
23	*	*	Not Used
24	*	*	Not Used
25	*	*	Not Used
26	*	*	Not Used
27	CCB19 (GN-BN)	10	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)
28	GD233 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT
29	CCB17 (BU-GN)	10	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)
30	GD233 (BK)	14	GROUND - COWL SIDE/PILLAR A LEFT
