Parking Brake Cable - RH: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

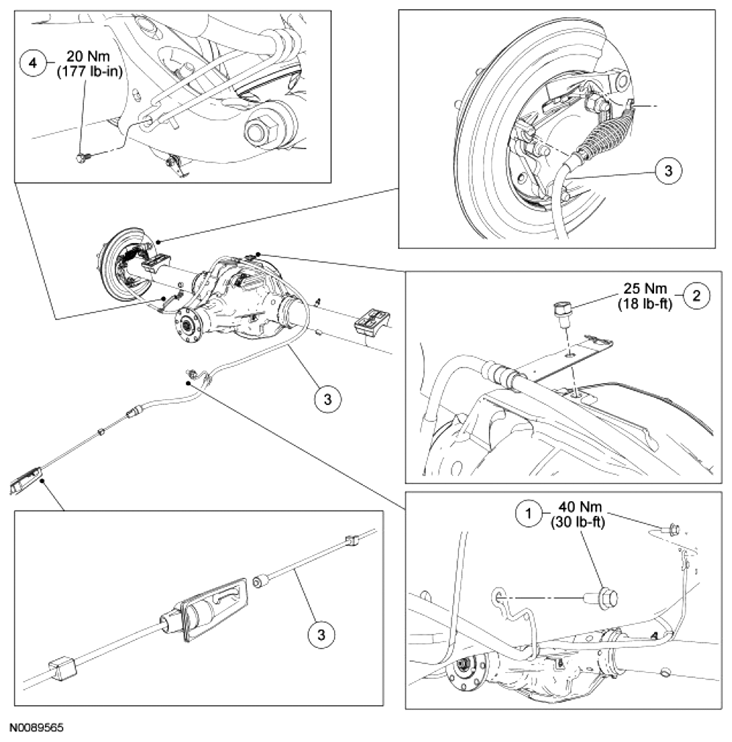

Fig 1: Parking Brake Cable With Torque Specifications - RH
G06777689Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505273 RH parking brake cable wire form bracket bolts
2 57632 Parking brake cable-to-differential bracket bolt
3 2A635 RH parking brake cable
4 W505264 Parking brake cable-to-shock mount bracket bolt
