Axle Shaft: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The wheels and tires do not have to be removed in order to remove the axle shafts.
    Fig 1: Locating Axle Shaft Retaining Bolts
    G07968002Courtesy of FORD MOTOR CO.
  1. Remove and discard the 8 axle shaft bolts.
  2. Remove the axle shaft.

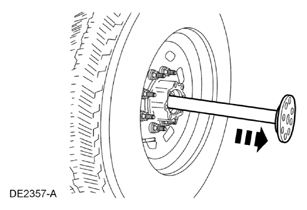

    Fig 2: Removing Axle Shaft
    G07968003Courtesy of FORD MOTOR CO.
  3. Inspect the axle shaft O-ring seal for cracks, nicks or wear and install a new seal, if required.
    Fig 3: Inspecting Axle Shaft O-Ring Seal For Cracks
    G07968004Courtesy of FORD MOTOR CO.
