Turbine Shaft Speed (TSS) Sensor: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

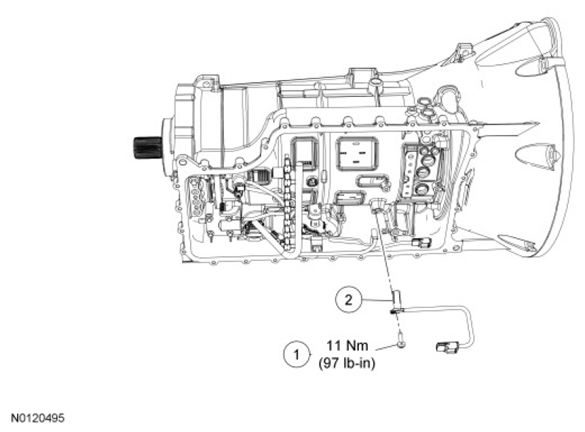

Fig 1: TSS Sensor And Bolt With Torque Specification
G07482883Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - TSS sensor bolt (part of 7H103)
2 7H103 TSS sensor
