Transmission Fluid Temperature (TFT) Sensor: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
  2. Disconnect the TFT sensor electrical connector.
    Fig 1: Locating TFT Sensor Electrical Connector
    G07482857Courtesy of FORD MOTOR CO.
  3. Remove the TFT sensor.
    1. Pull the tab.
    2. Rotate the TFT sensor 90 degrees counterclockwise and remove it from the main control valve body.

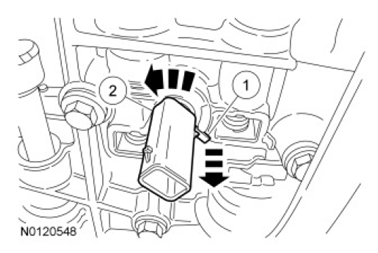

      Fig 2: Removing TFT Sensor
      G07482858Courtesy of FORD MOTOR CO.
