Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the TFT sensor in the main control valve body and rotate it 90 degrees clockwise to lock it in place.
1. Install the TFT sensor in the main control valve body.
2. Rotate the TFT sensor 90 degrees clockwise to lock the lock tab in place.

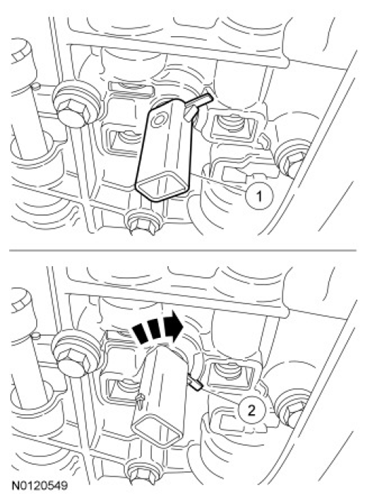

  Fig 1: Installing TFT Sensor In Main Control Valve Body
  Courtesy of FORD MOTOR CO.
Connect the TFT sensor electrical connector.

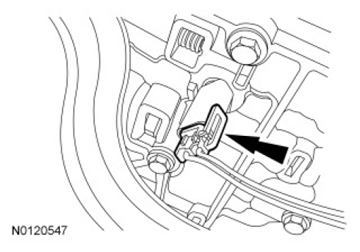

Fig 2: Locating TFT Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
