Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the OSS sensor and install the bolt.
- Tighten to 11 Nm (97 lb-in).

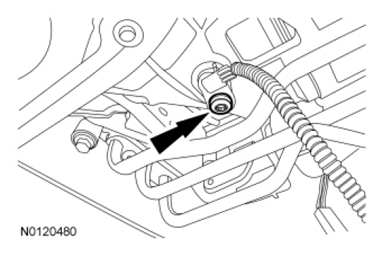

  Fig 1: Locating OSS Sensor Bolt
  Courtesy of FORD MOTOR CO.
Connect the OSS sensor electrical connector.

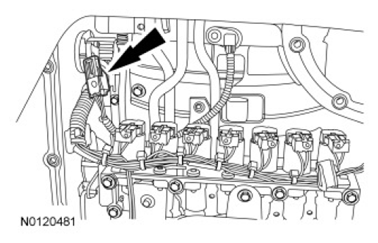

Fig 2: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN .
