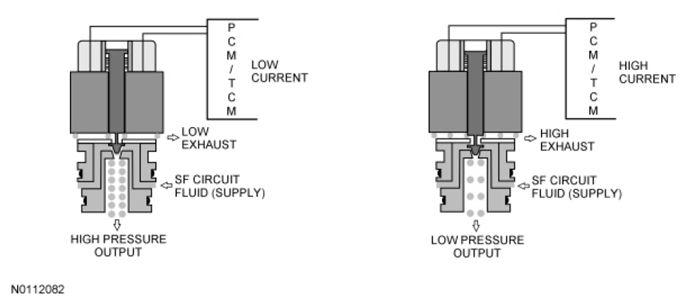

Normally High Solenoids
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOID TYPE
| Solenoid /Clutch | Type |
|---|---|
| Shift Solenoid A (SSA) /Forward (1, 2, 3, 4) | Normally Low |
| Shift Solenoid B (SSB) /Direct (3, 5, R) | Normally High |
| Shift Solenoid C (SSC) /Intermediate (2, 6) | Normally Low |
| Shift Solenoid D (SSD) /Low/reverse (1, R) | Normally Low |
| Shift Solenoid E (SSE) /Overdrive (4, 5, 6) | Normally High |
| Line Pressure Control (LPC) solenoid | Normally High |
| Torque Converter Clutch (TCC) solenoid | Normally Low |
