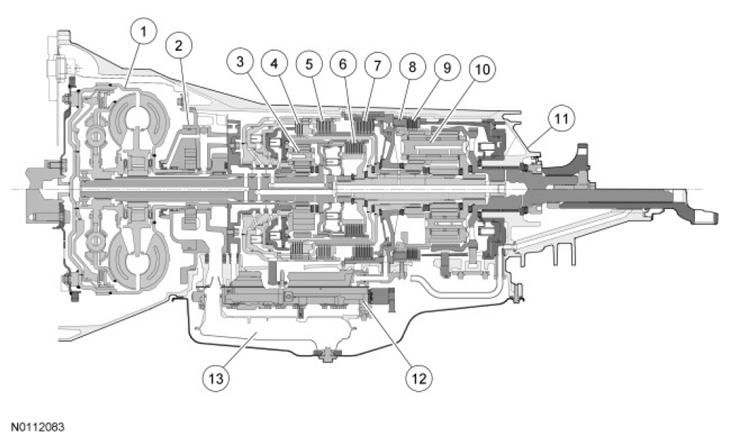

Cutaway View
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Pump assembly |
| 3 | Front planetary gearset |
| 4 | Forward (1, 2, 3, 4) clutch |
| 5 | Direct (3, 5, R) clutch |
| 6 | Overdrive (4, 5, 6) clutch |
| 7 | Intermediate clutch (2, 6) |
| 8 | Low/One-Way Clutch (OWC) (part of 7G224) |
| 9 | Low/reverse (1, R) clutch |
| 10 | Rear planetary gearset |
| 11 | Transmission case |
| 12 | Main control assembly |
| 13 | Transmission fluid filter |
