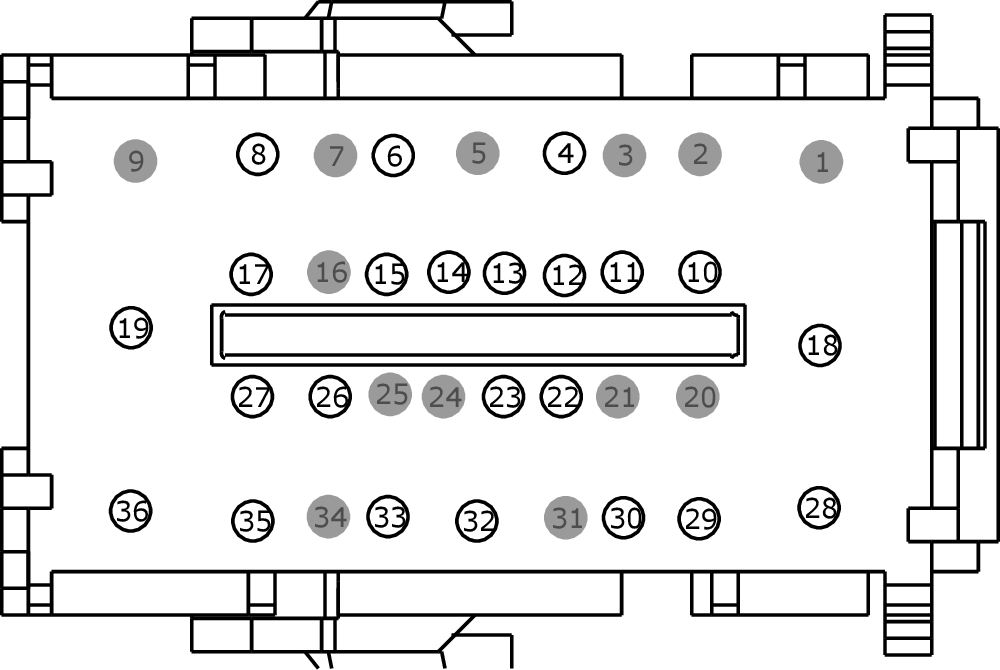

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2280C
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CBX07 (GN-RD) | 22 | POWER - CTRL MOD. AMBIENT LIGHTING | |
| 5 | * | * | Not Used | |
| 6 | GD239 (BK-YE) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT | |
| 7 | * | * | Not Used | |
| 8 | CBP36 (BU-BN) | 18 | FUSE - 36 OR CIRCUIT BREAKER | |
| 8 | CBP36 (BU-BN) | 18 | FUSE - 36 OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | GD238 (BK-WH) | 16 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 11 | CLS10 (GN-BN) | 22 | CTRL MOD. - REVERSE LEFT OR COMMON | |
| 11 | CLS10 (GN-BN) | 18 | CTRL MOD. - REVERSE LEFT OR COMMON | |
| 12 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | |
| 13 | VLN33 (GY-VT) | 22 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
| 14 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 14 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 15 | SBP11 (BU-RD) | 22 | FUSE - 11 OR CIRCUIT BREAKER | |
| 16 | * | * | Not Used | |
| 17 | SBP14 (BN-RD) | 22 | FUSE - 14 OR CIRCUIT BREAKER | |
| 18 | SBP26 (YE-RD) | 16 | FUSE - 26 OR CIRCUIT BREAKER | |
| 19 | SBP27 (BU-RD) | 16 | FUSE - 27 OR CIRCUIT BREAKER | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | |
| 23 | CBP22 (GN-OG) | 22 | FUSE - 22 OR CIRCUIT BREAKER | |
| 23 | CBP22 (GN-OG) | 20 | FUSE - 22 OR CIRCUIT BREAKER | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | CLN25 (VT) | 22 | RELAY - PUDDLE LAMPS (KERB ILLUM.) | |
| 26 | CLN25 (VT) | 22 | RELAY - PUDDLE LAMPS (KERB ILLUM.) | |
| 27 | CPL51 (BU-GN) | 18 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | |
| 28 | SBP25 (RD) | 10 | FUSE - 25 OR CIRCUIT BREAKER | |
| 29 | SBP02 (YE-RD) | 20 | FUSE - 2 OR CIRCUIT BREAKER | |
| 30 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 31 | * | * | Not Used | |
| 32 | CPL13 (BN-GN) | 18 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | |
| 32 | CPL13 (BN-GN) | 16 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | |
| 33 | CPL10 (GN-WH) | 16 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE | |
| 34 | * | * | Not Used | |
| 35 | CPL11 (GY-BN) | 18 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 35 | CPL11 (GY-BN) | 16 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 36 | CBP38 (GY-BU) | 14 | FUSE - 38 OR CIRCUIT BREAKER |
