Park Brake Control Module (PBM): Removal
WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

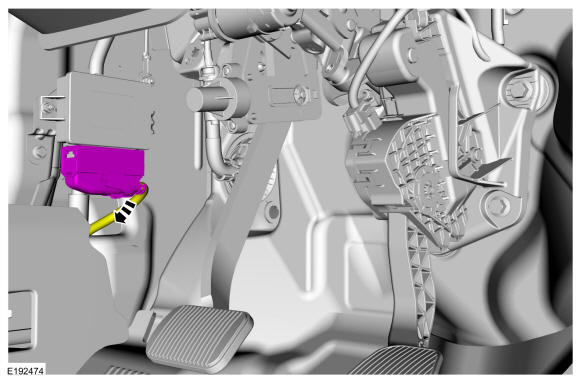

- Disconnect the EPB module electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

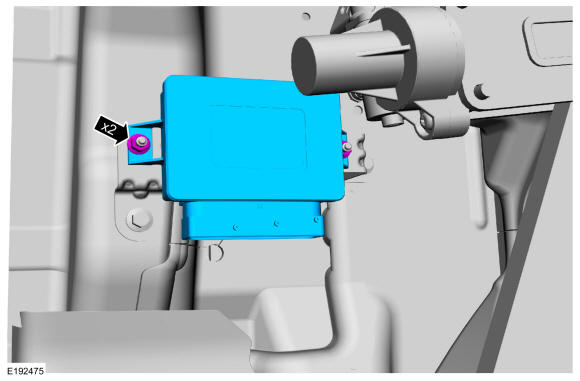

- Remove the 2 nuts and the EPB module.
Torque: 102 lb.in (11.5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
