Vehicle Repair Location Codes
TO PINPOINT THE ACTUAL VEHICLE LOCATION OF A REPAIR, THE VEHICLE REPAIR LOCATION CODE IS REQUIRED.

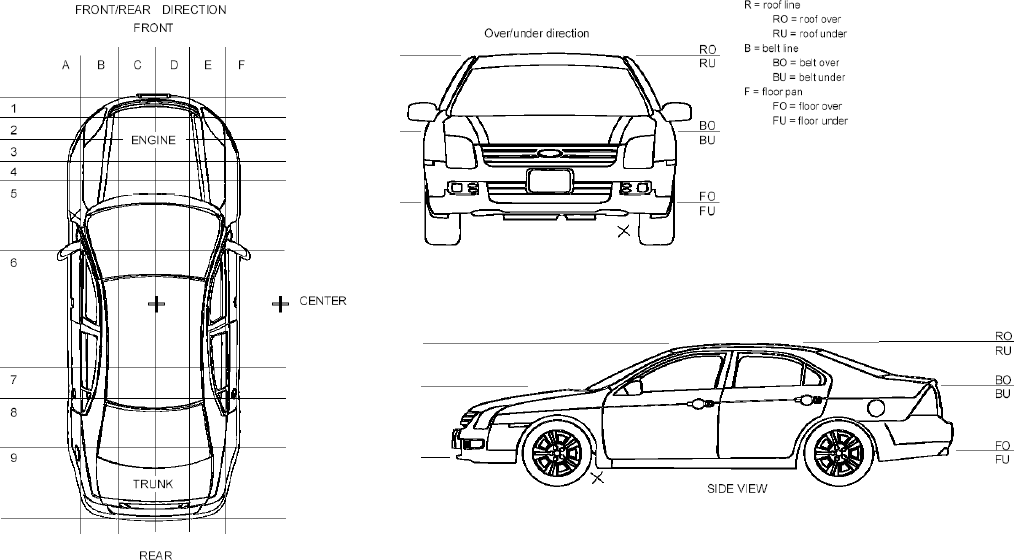

For example, an "X" has been placed in the quadrant of the vehicle diagrams indicating the location of the repair. See diagram in illustration.
LOCATION CODE, FOR THE EXAMPLE A5/FU - (UNDER THE FLOOR OF DRIVER'S LEFT FOOT.)
