Piston Ring-to-Groove Clearance

Piston Ring-to-Groove Clearance





NOTE: Refer to the Engine System level for the specification.

1. Inspect the piston for ring land damage or accelerated wear.

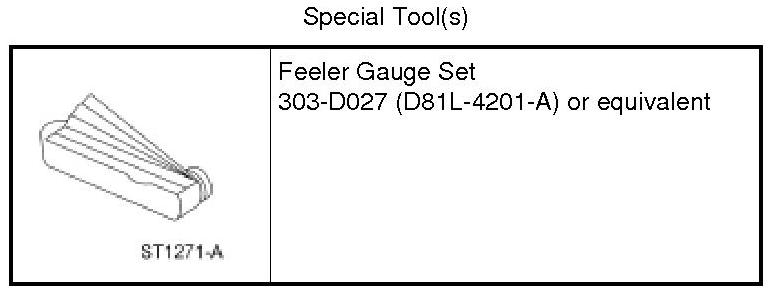

2. Using the Feeler Gauge Set, measure the piston ring-to-groove clearance.
