Ford
>>
2012
>>
Fusion AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
>>

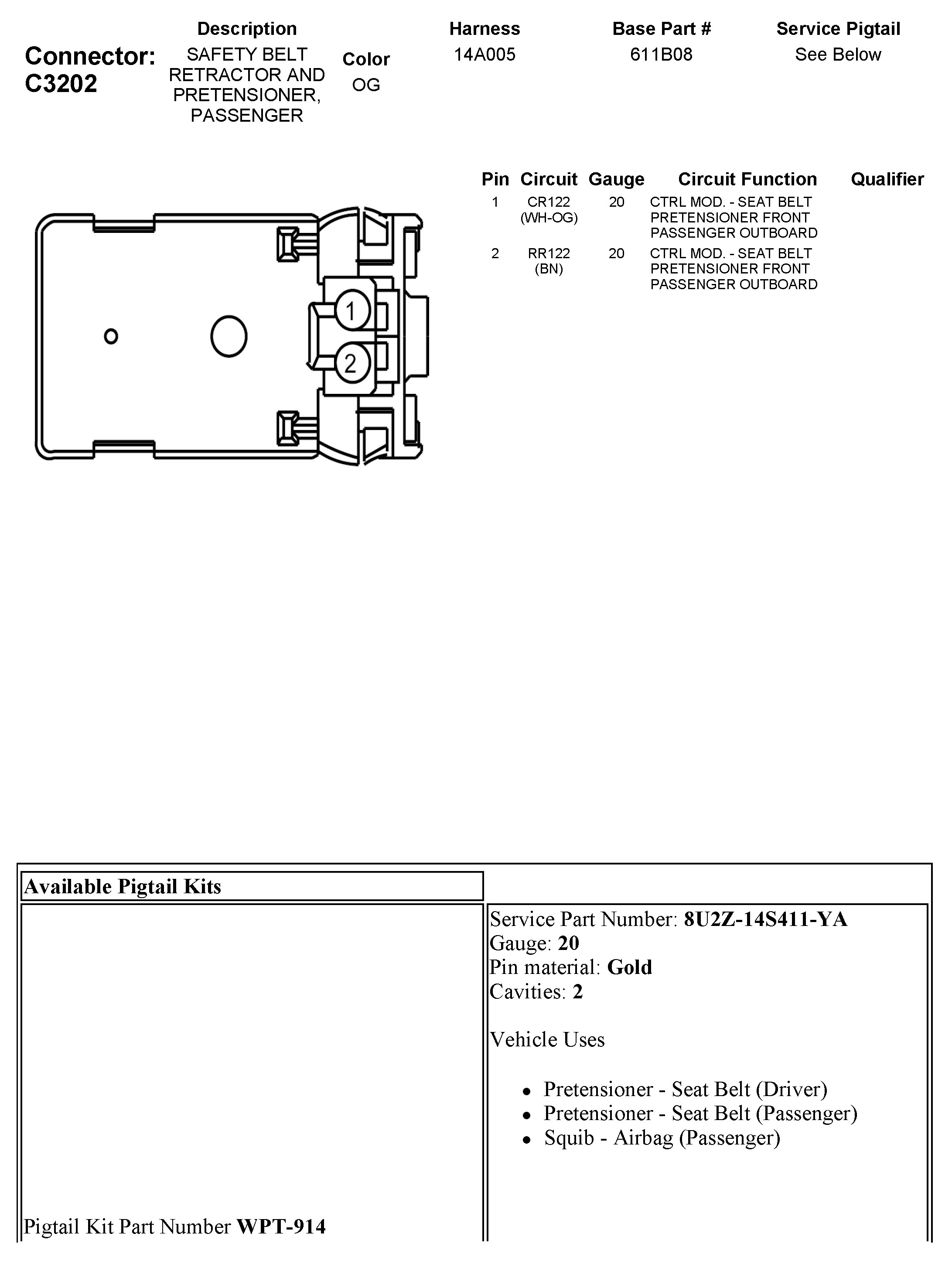

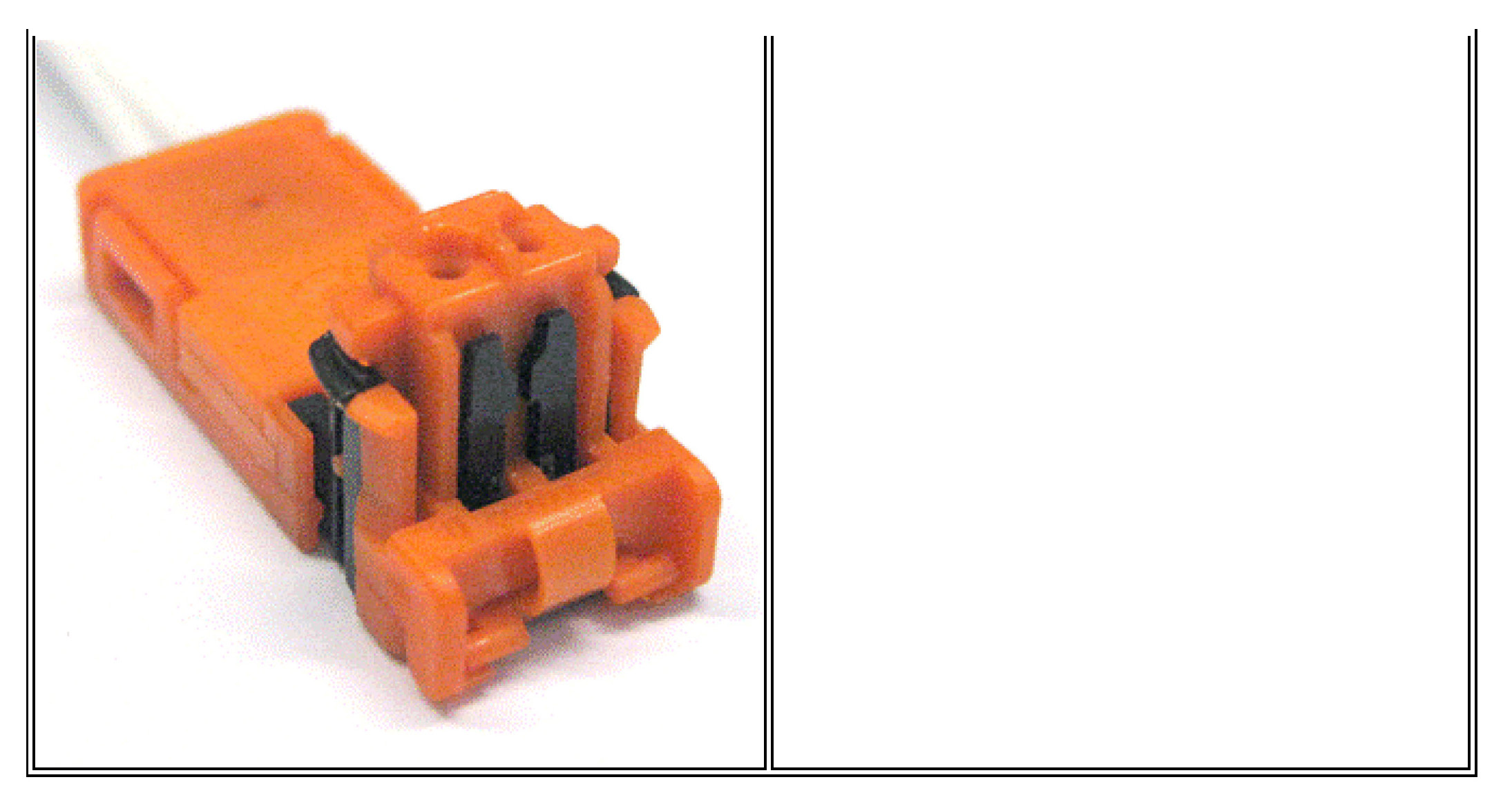

C3202 Safety Belt Retractor and Pretensioner, Passenger
C3202 Safety Belt Retractor and Pretensioner, Passenger
