Selector Lever Cable: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS .
Refer to: Air Cleaner Outlet Pipe ( AIR CLEANER OUTLET PIPE .
Fig 1: Sliding Selector Lever Cable End Upward
Courtesy of FORD MOTOR CO.
1. Release the locking tab on the selector lever cable clip.
2. Remove the selector lever cable from the selector lever cable bracket.
Fig 2: Removing Selector Lever Cable From Selector Lever Cable Bracket
Courtesy of FORD MOTOR CO.
Fig 3: Removing Center Console Trim Panel
Courtesy of FORD MOTOR CO.
Fig 4: Locating Center Console Side Trim Panel And Retainer
Courtesy of FORD MOTOR CO.
Fig 5: Locating Console Side Trim Panel Screws
Courtesy of FORD MOTOR CO.
Fig 6: Locating Console Lower Trim Panel Screws
Courtesy of FORD MOTOR CO.
Fig 7: Locating Center Console Side Trim Panel Screws
Courtesy of FORD MOTOR CO.
Fig 8: Locating Center Console RH Panel Bolts
Courtesy of FORD MOTOR CO.
Fig 9: Locating Fastener
Courtesy of FORD MOTOR CO.
Fig 10: Disconnecting Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Refer to: Jacking and Lifting - Overview ( JACKING AND LIFTING - OVERVIEW ).
Fig 11: Locating Engine Lower Panel Screws And Fasteners
Courtesy of FORD MOTOR CO.

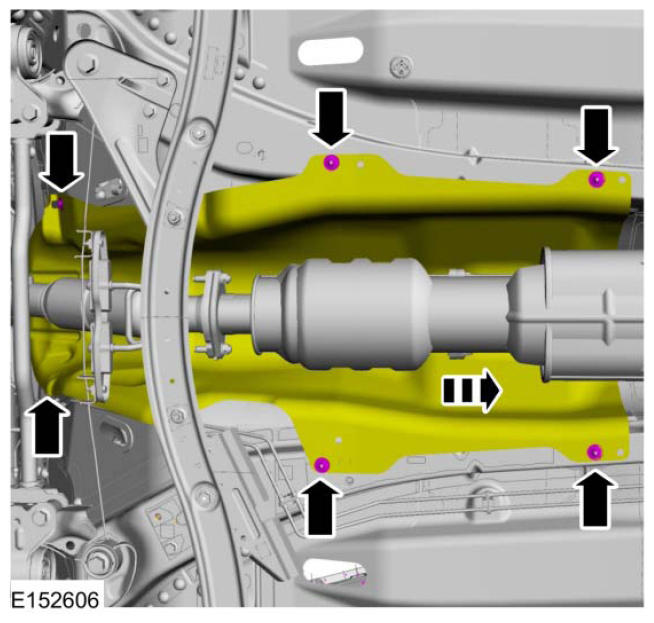

Fig 12: Locating Exhaust Heat Shield Fasteners
Courtesy of FORD MOTOR CO.
Fig 13: Removing Selector Lever Cable Clamp
Courtesy of FORD MOTOR CO.
Fig 14: Removing Selector Lever Cable End
Courtesy of FORD MOTOR CO.
