Selector Lever Cable: Installation

WARNING: This page is about a different variant/trim than selected.

Fig 1: Installing Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Fig 2: Installing Selector Lever Cable Clamp
Courtesy of FORD MOTOR CO.
Fig 3: Locating Exhaust Heat Shield Fasteners
Courtesy of FORD MOTOR CO.

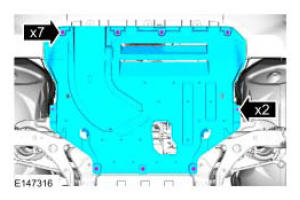

Fig 4: Locating Engine Lower Panel Screws And Fasteners
Courtesy of FORD MOTOR CO.
Fig 5: Installing Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Torque : 9 Nm

Fig 6: Locating Fastener
Courtesy of FORD MOTOR CO.
1. Torque : 10 Nm
2. Torque : 25 Nm
Fig 7: Identifying Center Console RH Panel Bolts
Courtesy of FORD MOTOR CO.

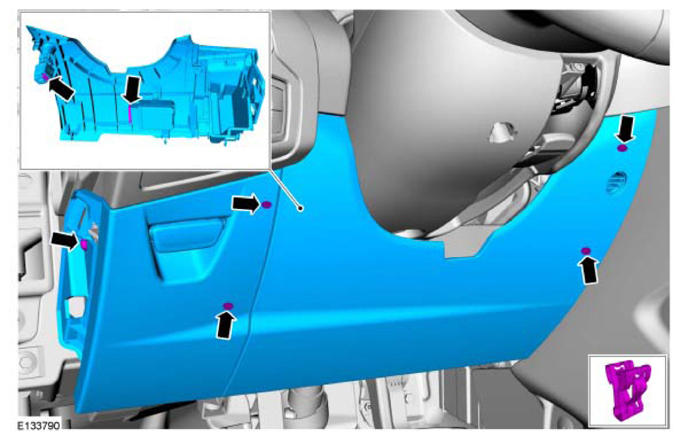

Fig 8: Locating Center Console Side Trim Panel Screws
Courtesy of FORD MOTOR CO.

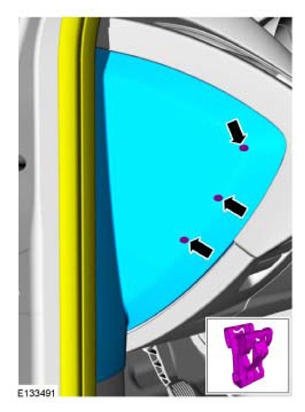

Fig 9: Locating Console Lower Trim Panel Screws
Courtesy of FORD MOTOR CO.

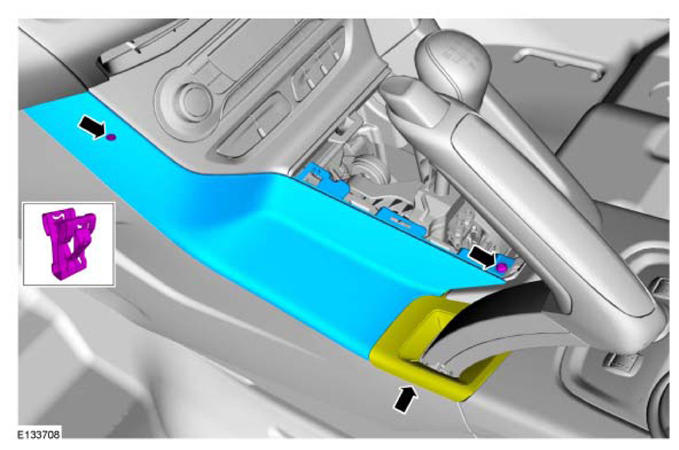

Fig 10: Locating Console Side Trim Panel Screws
Courtesy of FORD MOTOR CO.

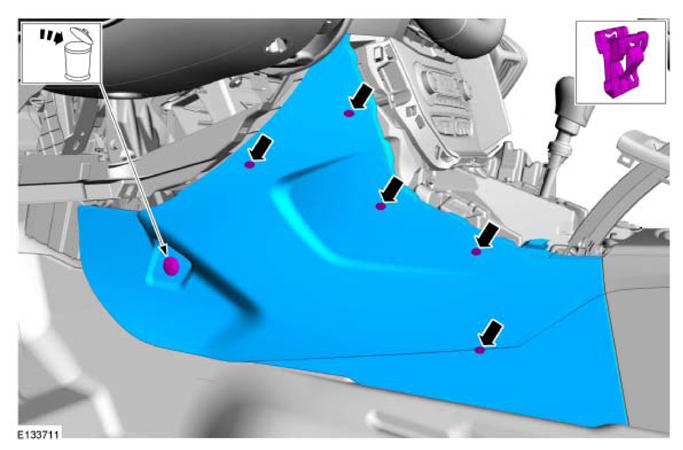

Fig 11: Locating Center Console Side Trim Panel And Retainer
Courtesy of FORD MOTOR CO.

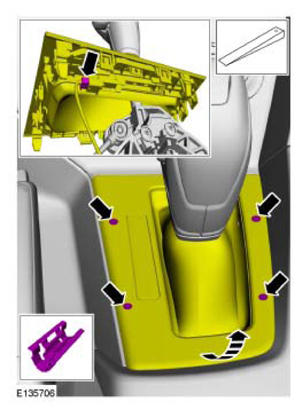

Fig 12: Removing Center Console Trim Panel
Courtesy of FORD MOTOR CO.
Fig 13: Installing Selector Lever Cable Bracket
Courtesy of FORD MOTOR CO.
Set the selector lever to the drive D position.

Fig 14: Identifying Selector Lever Position
Courtesy of FORD MOTOR CO.
Fig 15: Unlocking Lock Tab On Selector Lever Cable
Courtesy of FORD MOTOR CO.
NOTE: Position the selector shaft lever in the D position .
1. Set the selector lever to the D position.
2. Visual check.
Fig 16: Checking Selector Shaft Lever Position
Courtesy of FORD MOTOR CO.
Fig 17: Locking Selector Lever Cable Lock Tab
Courtesy of FORD MOTOR CO.
Refer to: Air Cleaner Outlet Pipe ( AIR CLEANER OUTLET PIPE ).
Verify that the vehicle only starts in P and N and the reverse lamps illuminate in R .
